QUT Architecture 4

Conceptual design for a fitness & academic center for locals. Must respond to site & context, be 5 stories high, and integrate fitness & learning into one center.

225 Main St, Kangaroo Point QLD 4169

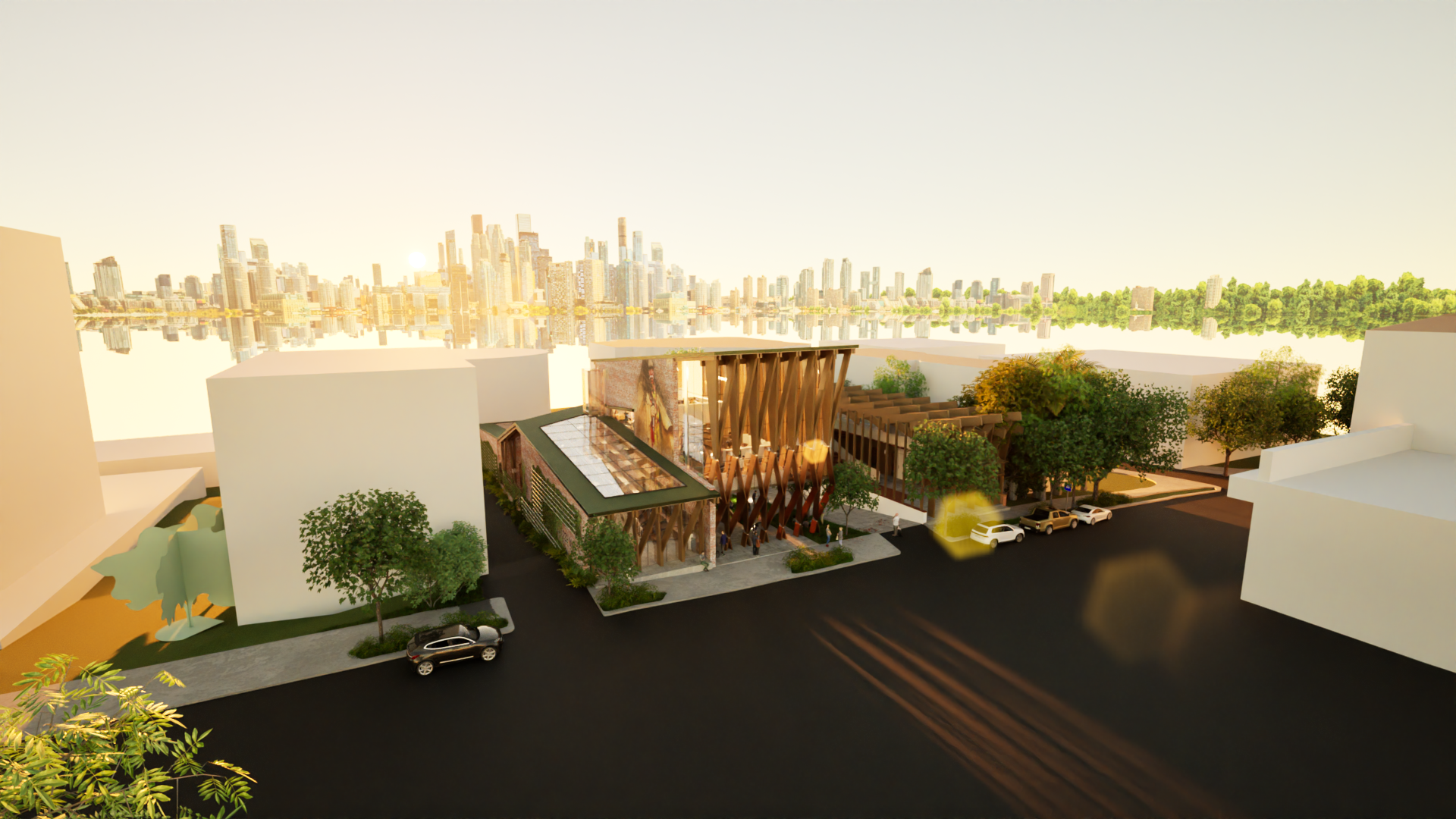

Conceptual Architectural Development of the property at 225 Main St, Kangaroo Point, QLD 4169, into a public Fitness and Wellbeing Center for the suburb.

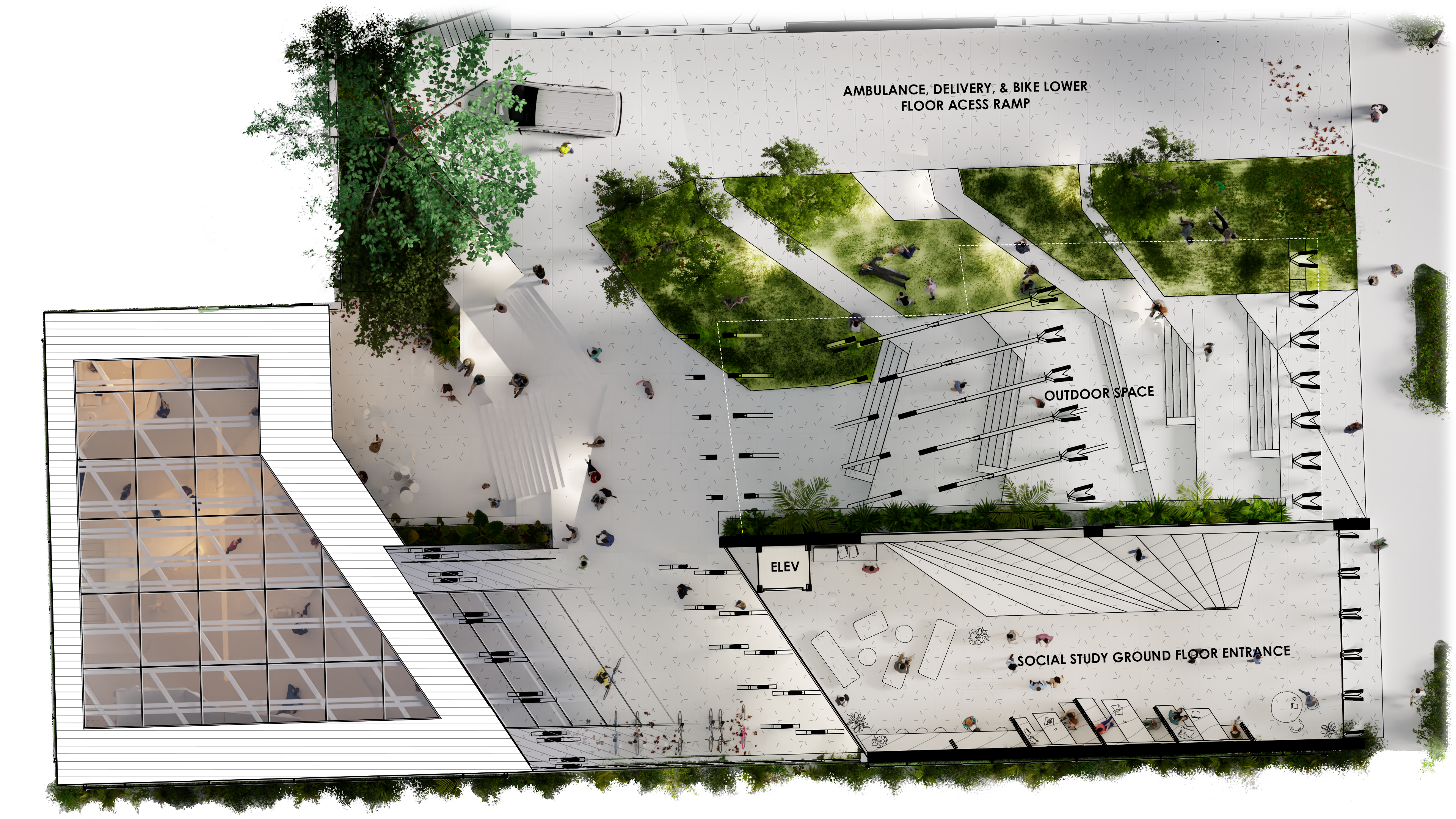

○ Site Plan

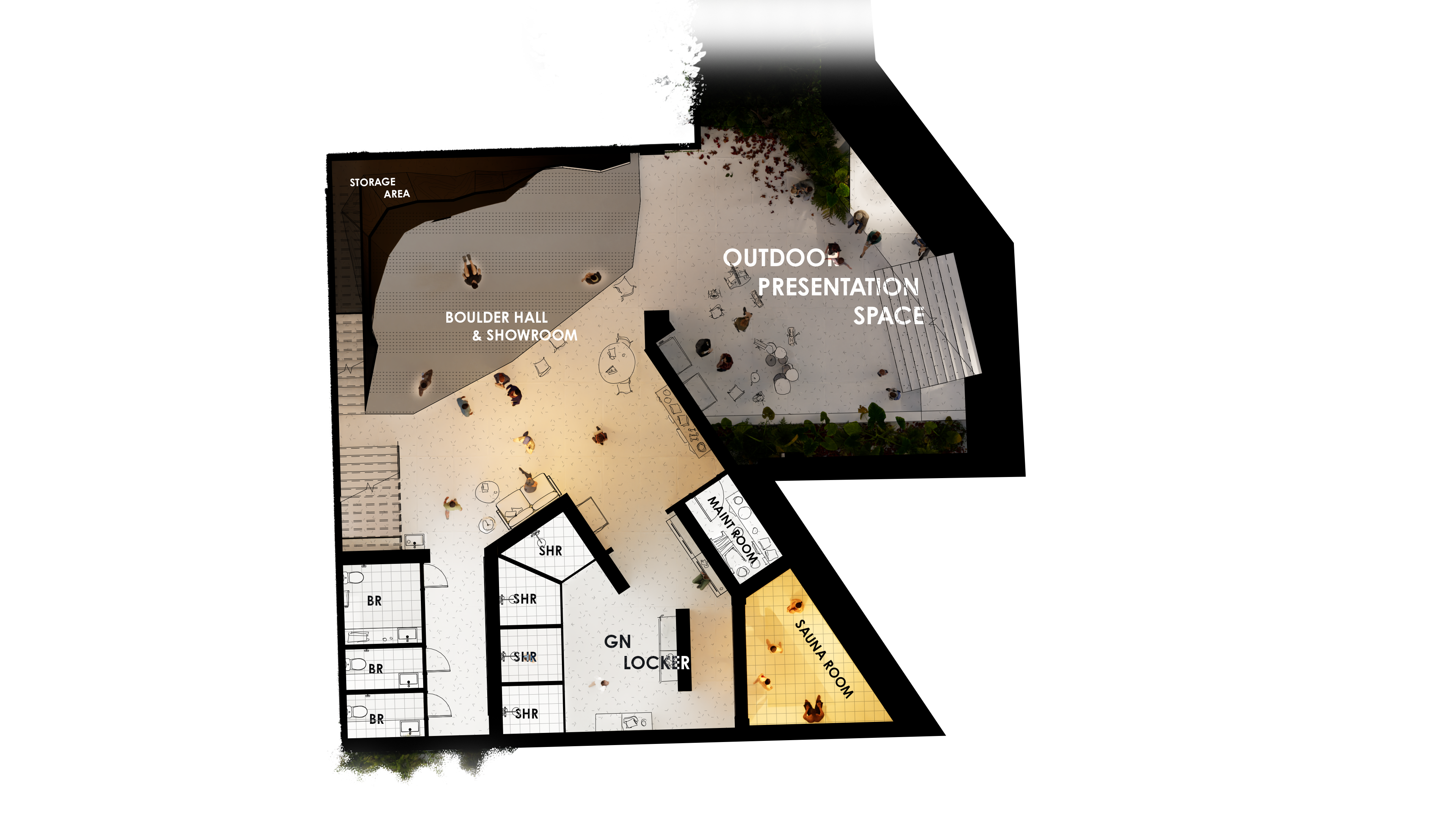

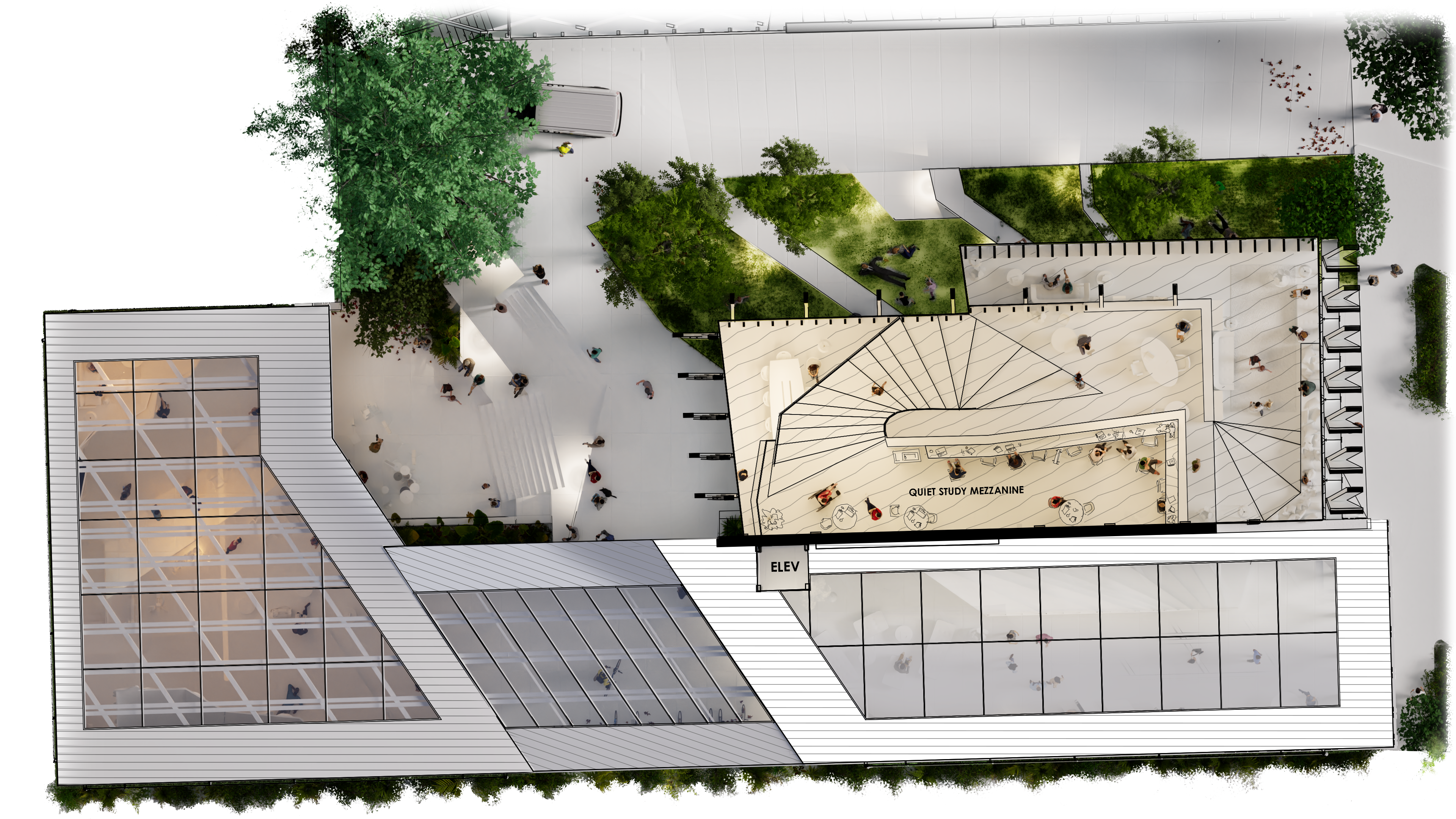

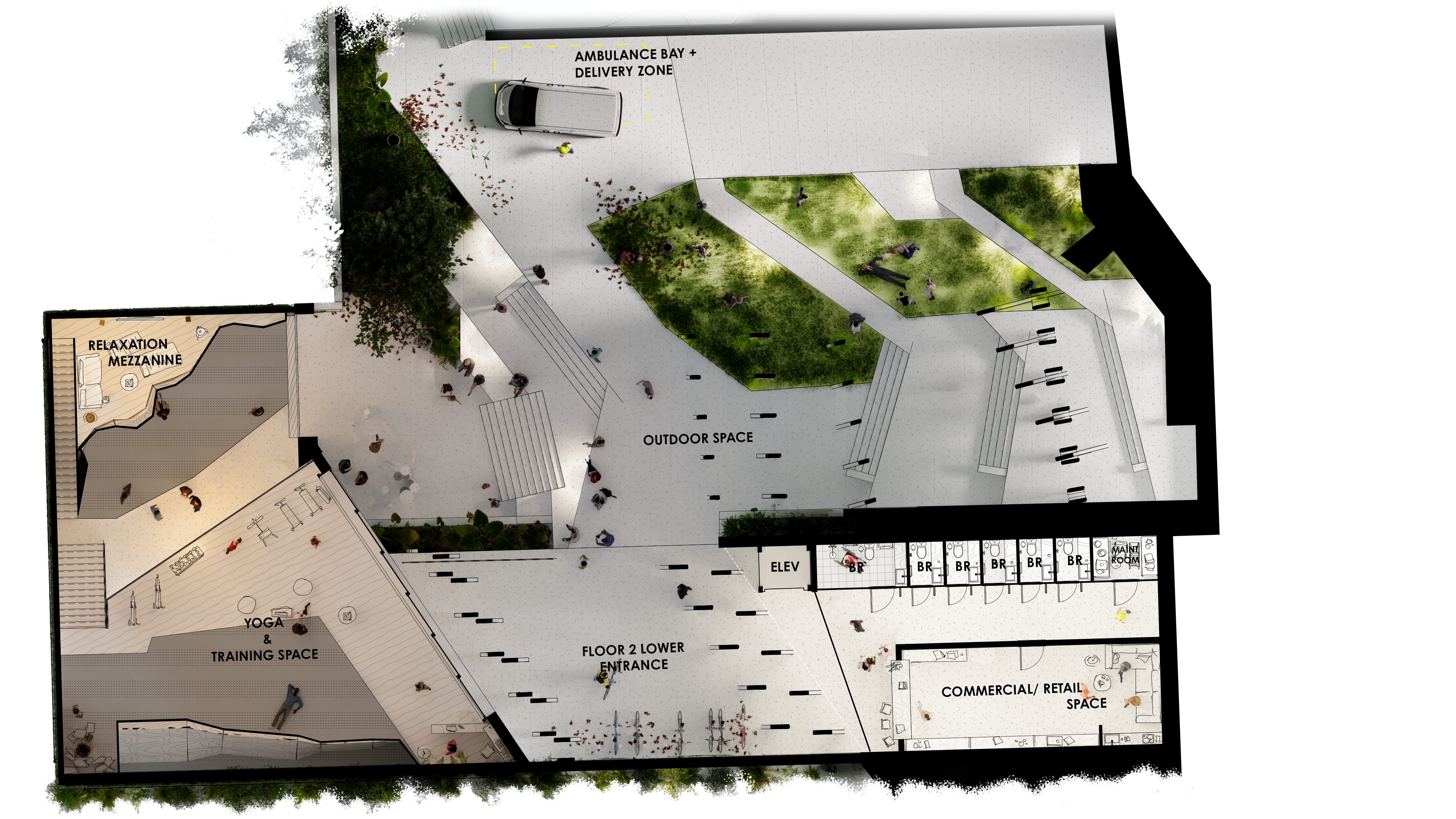

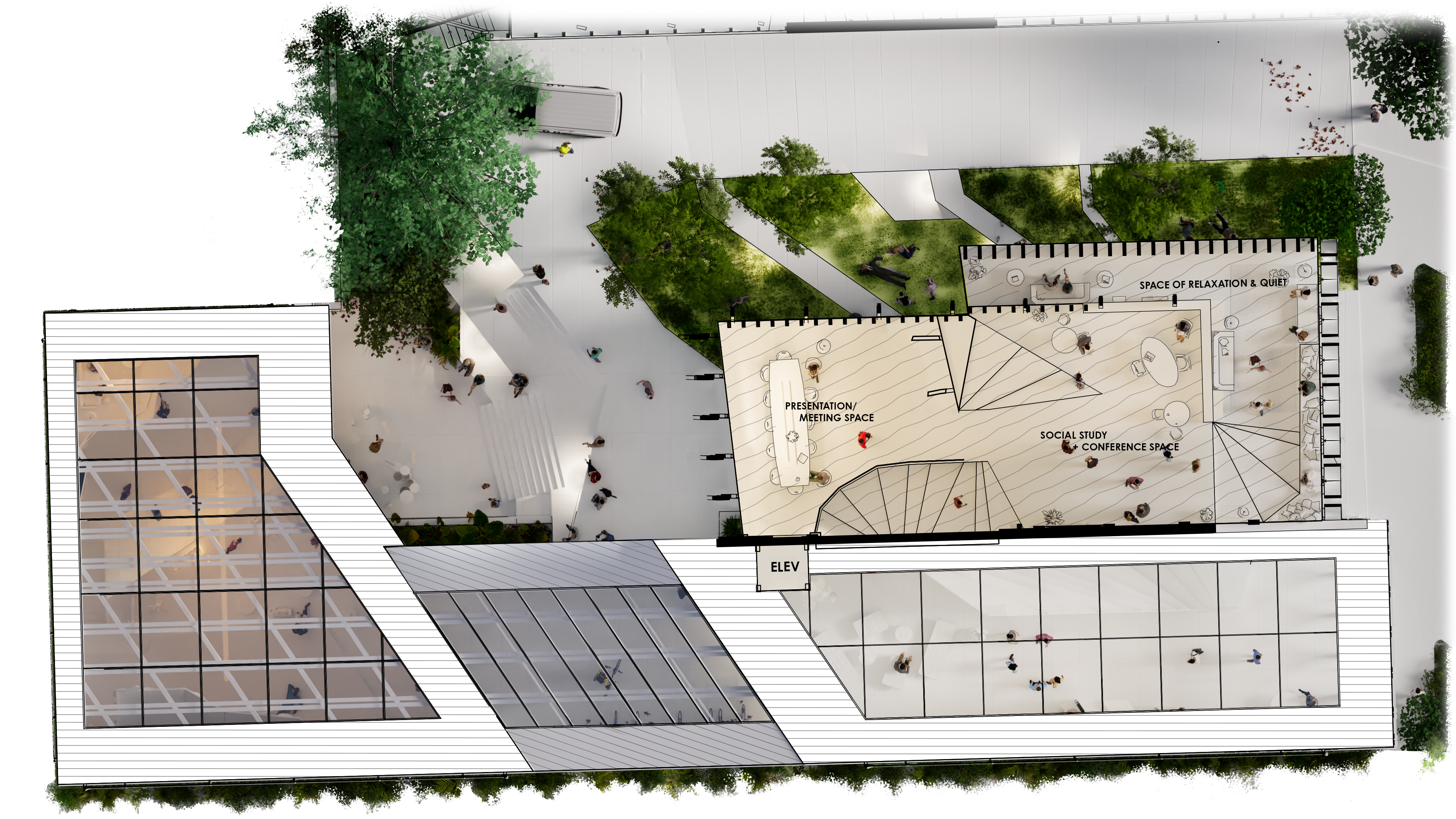

○ Floor Plans

○ Section's

○ Elevations

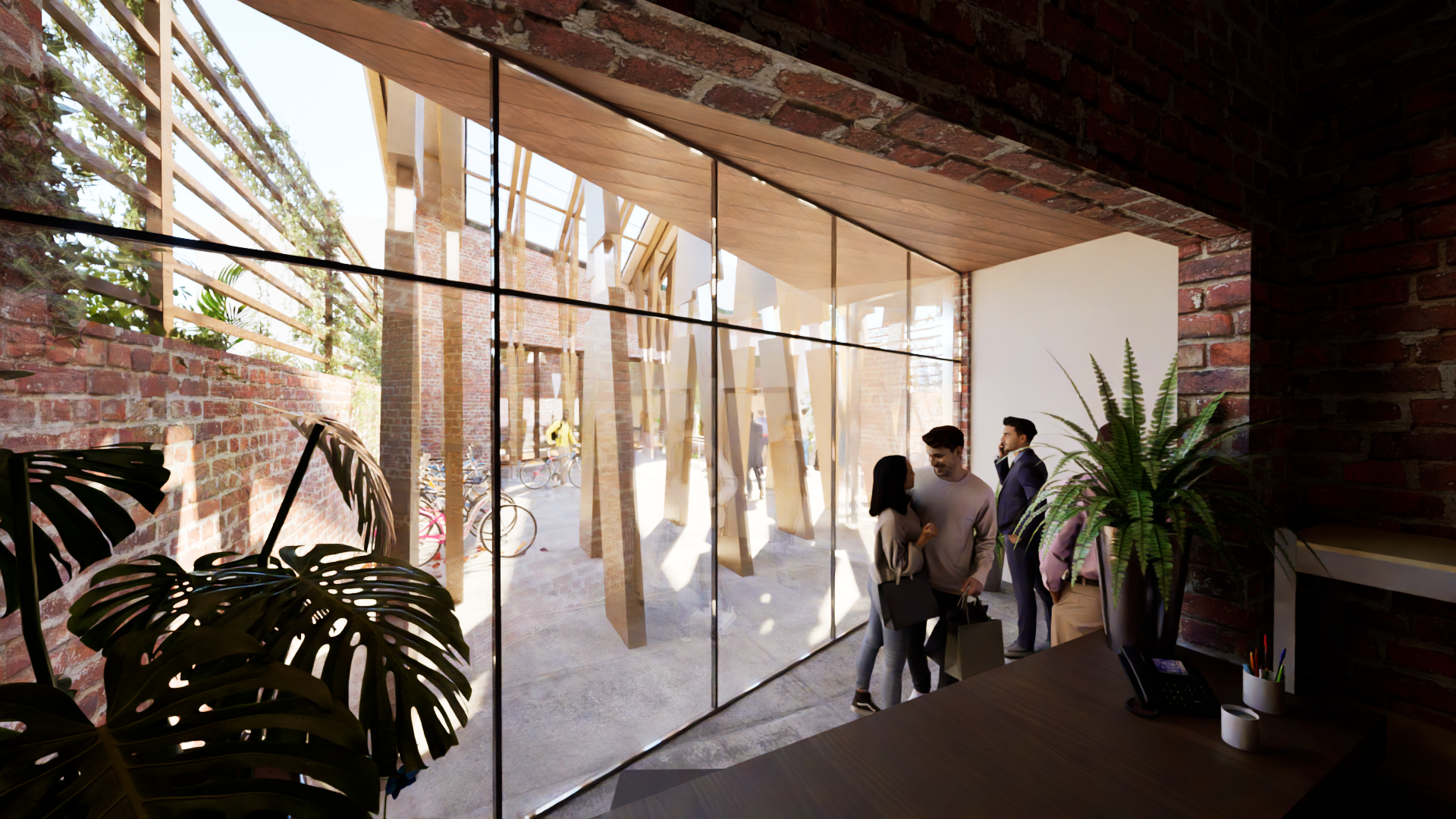

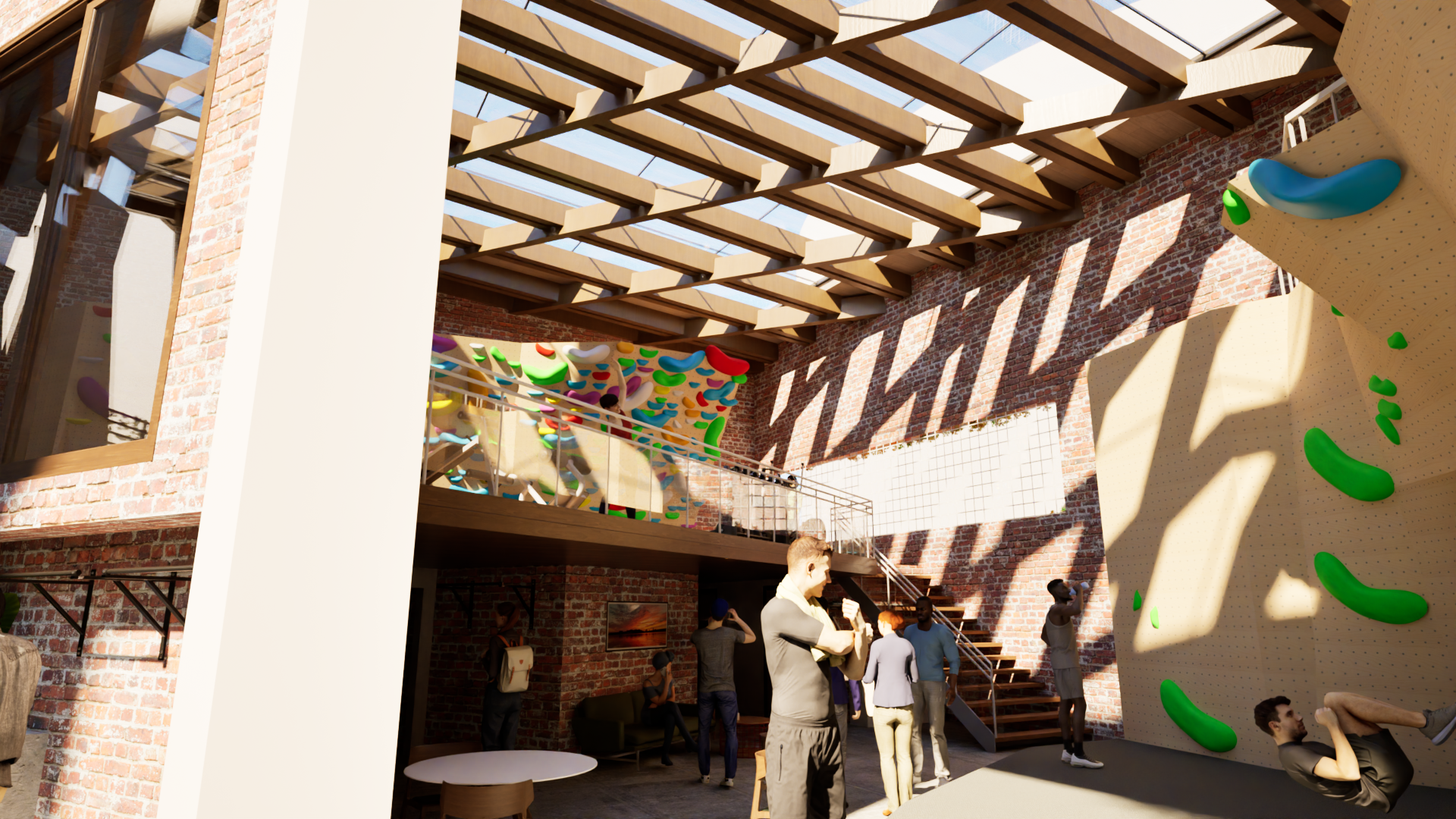

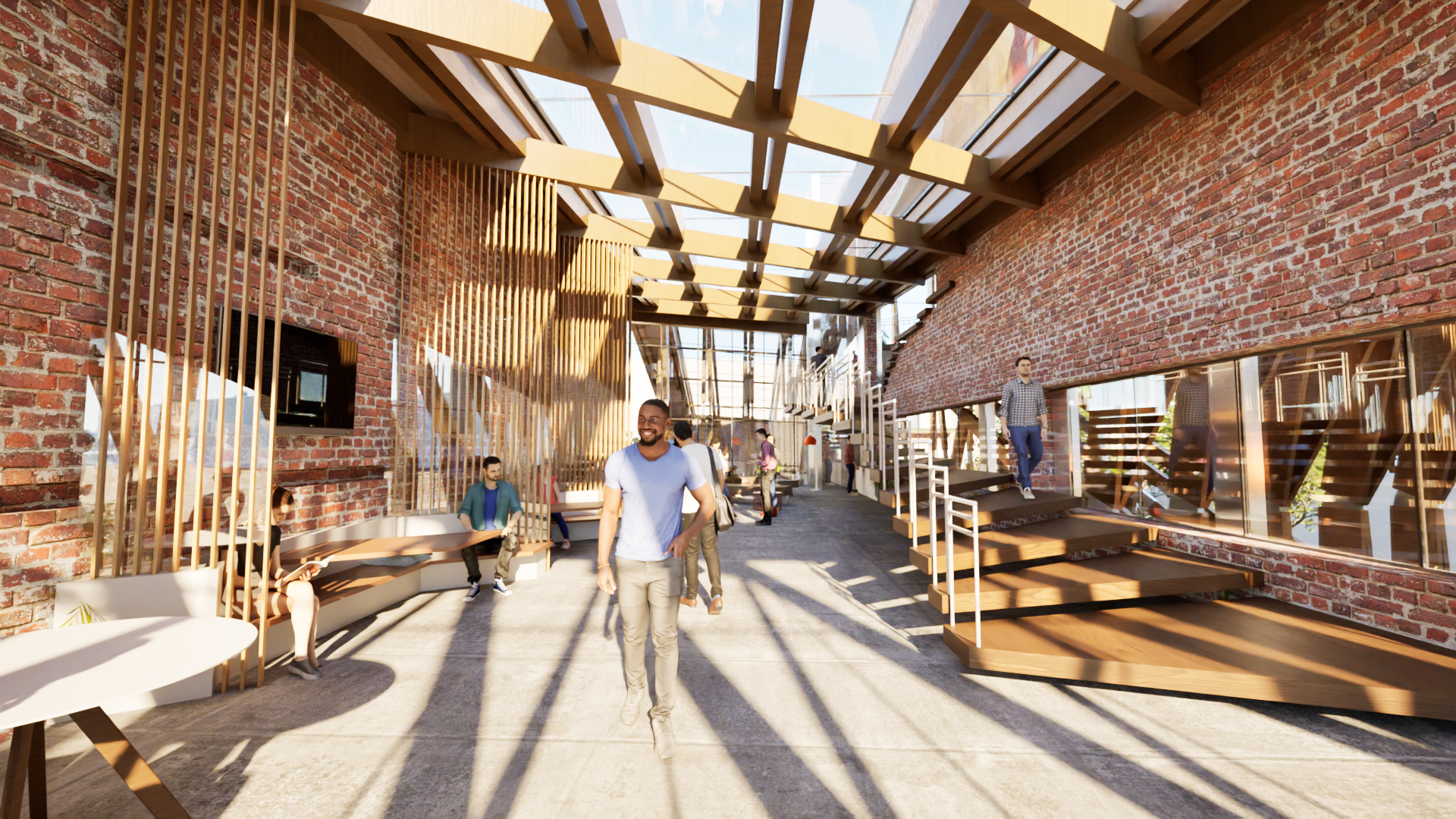

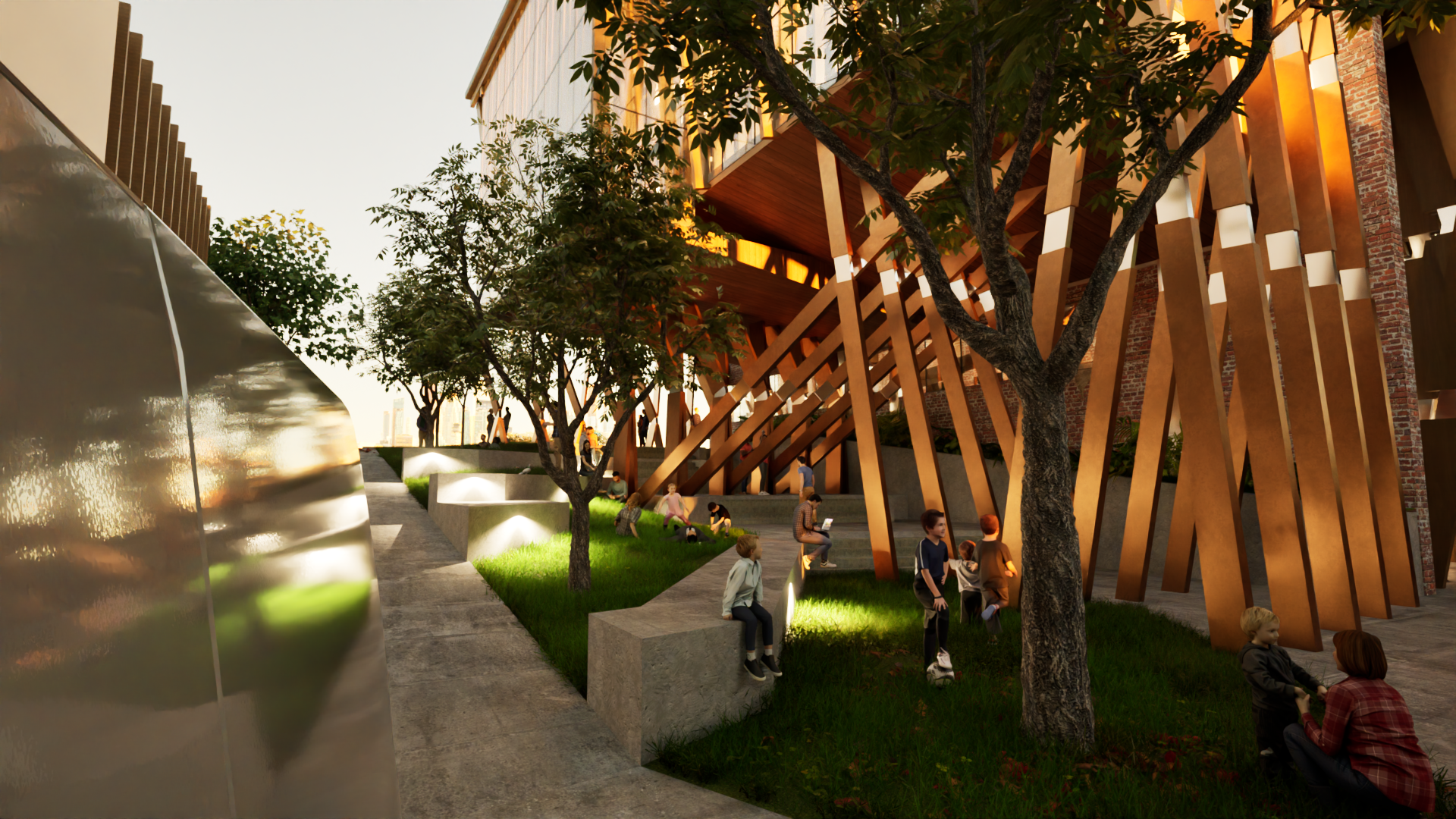

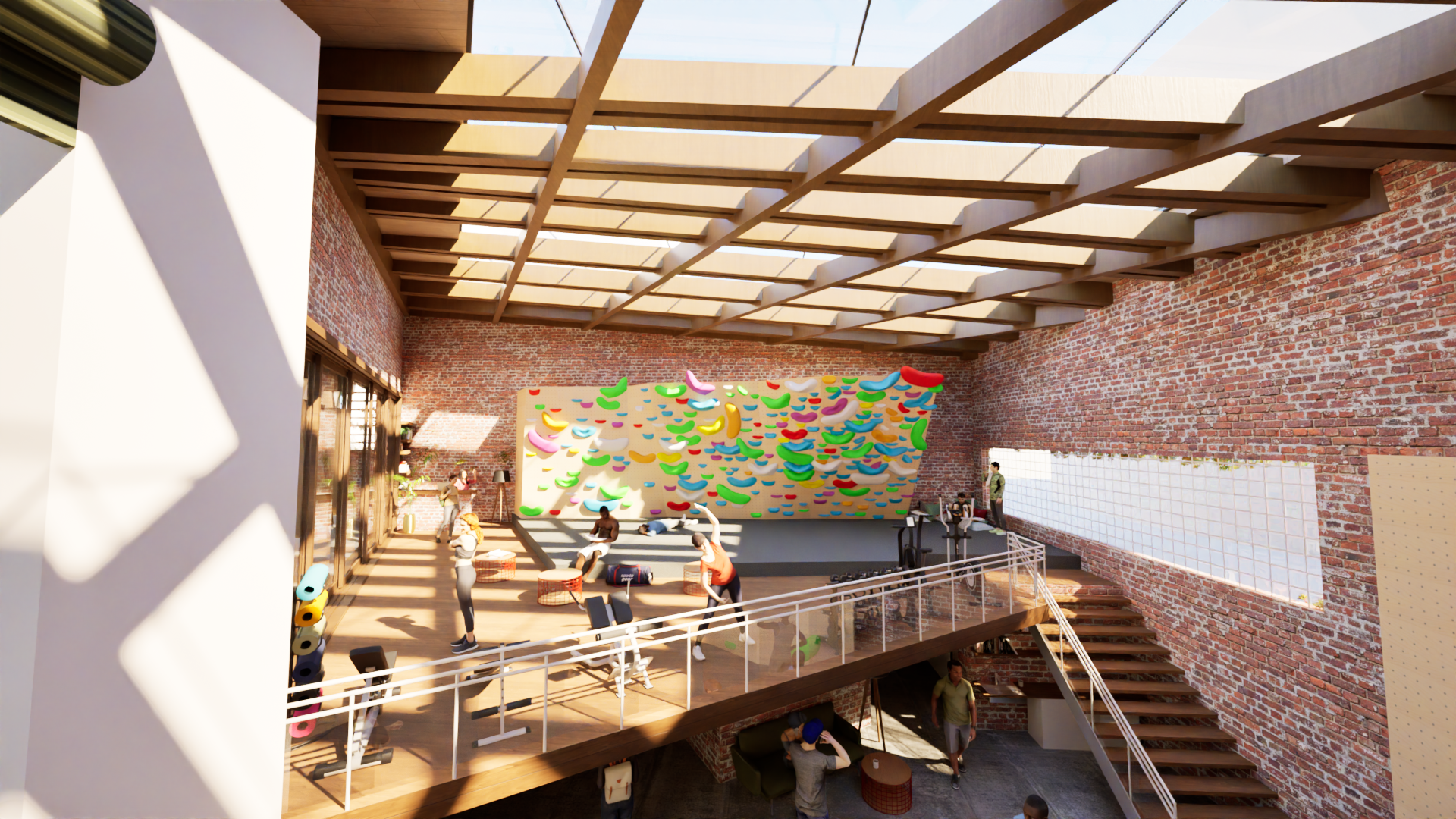

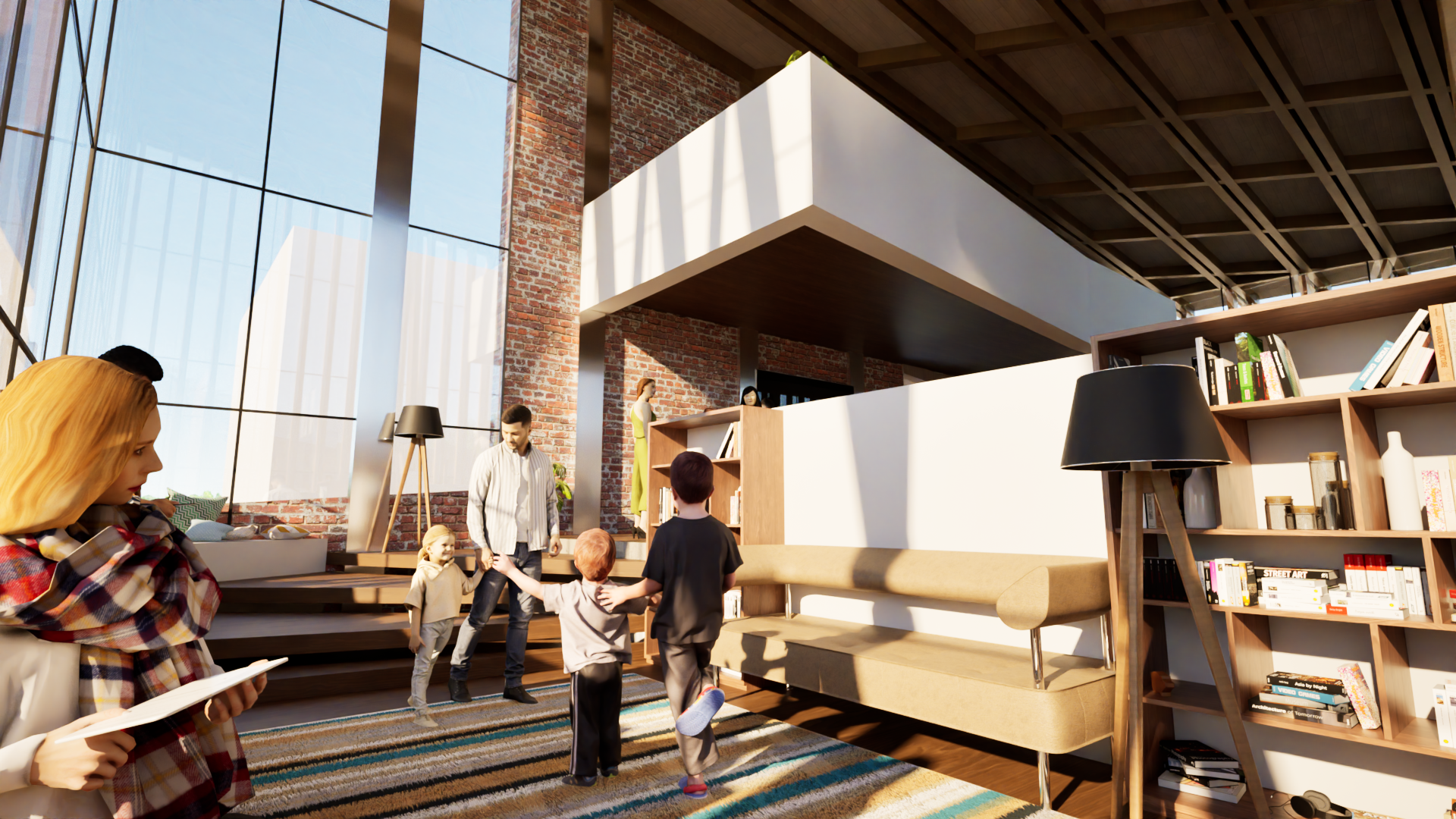

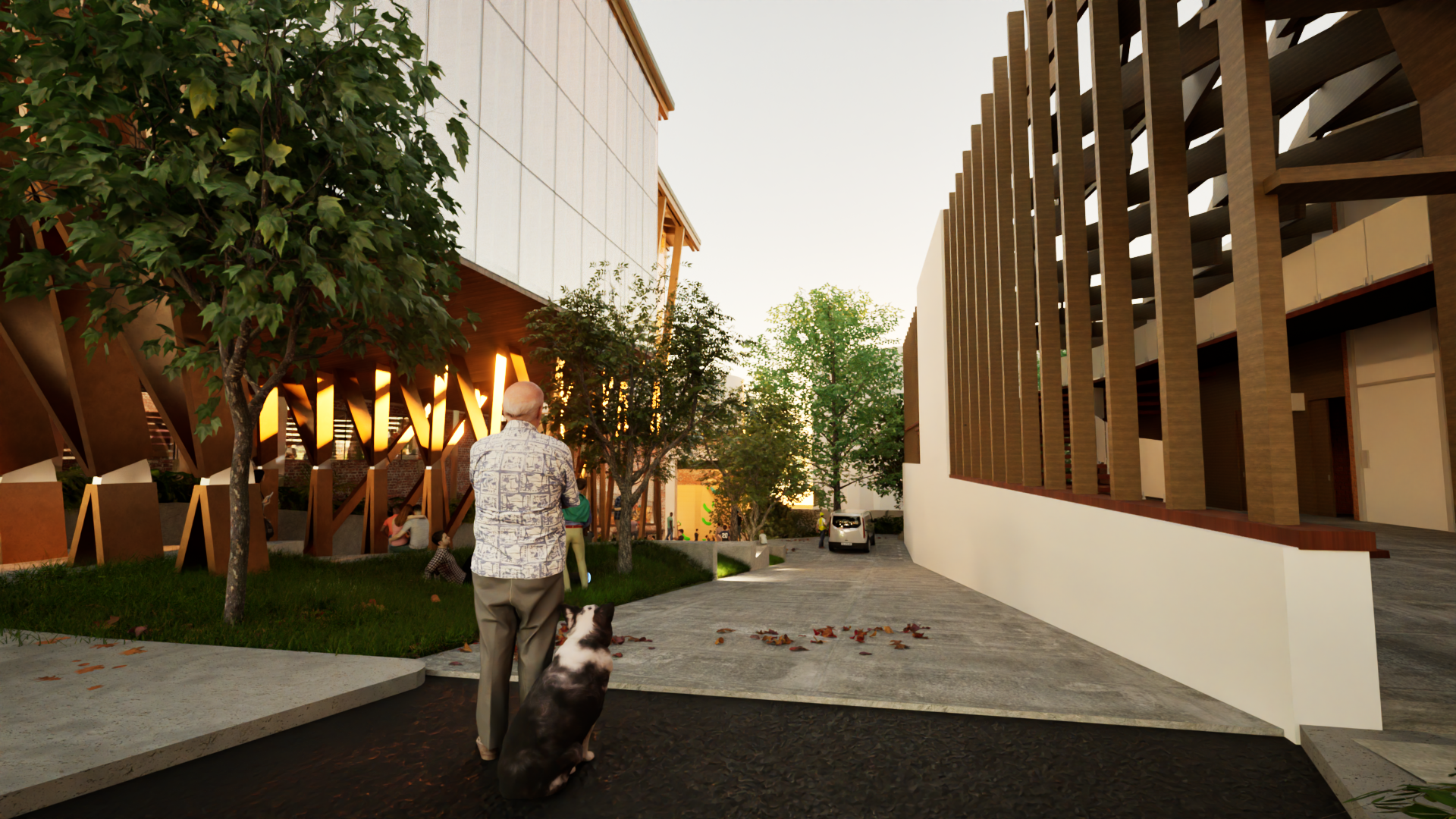

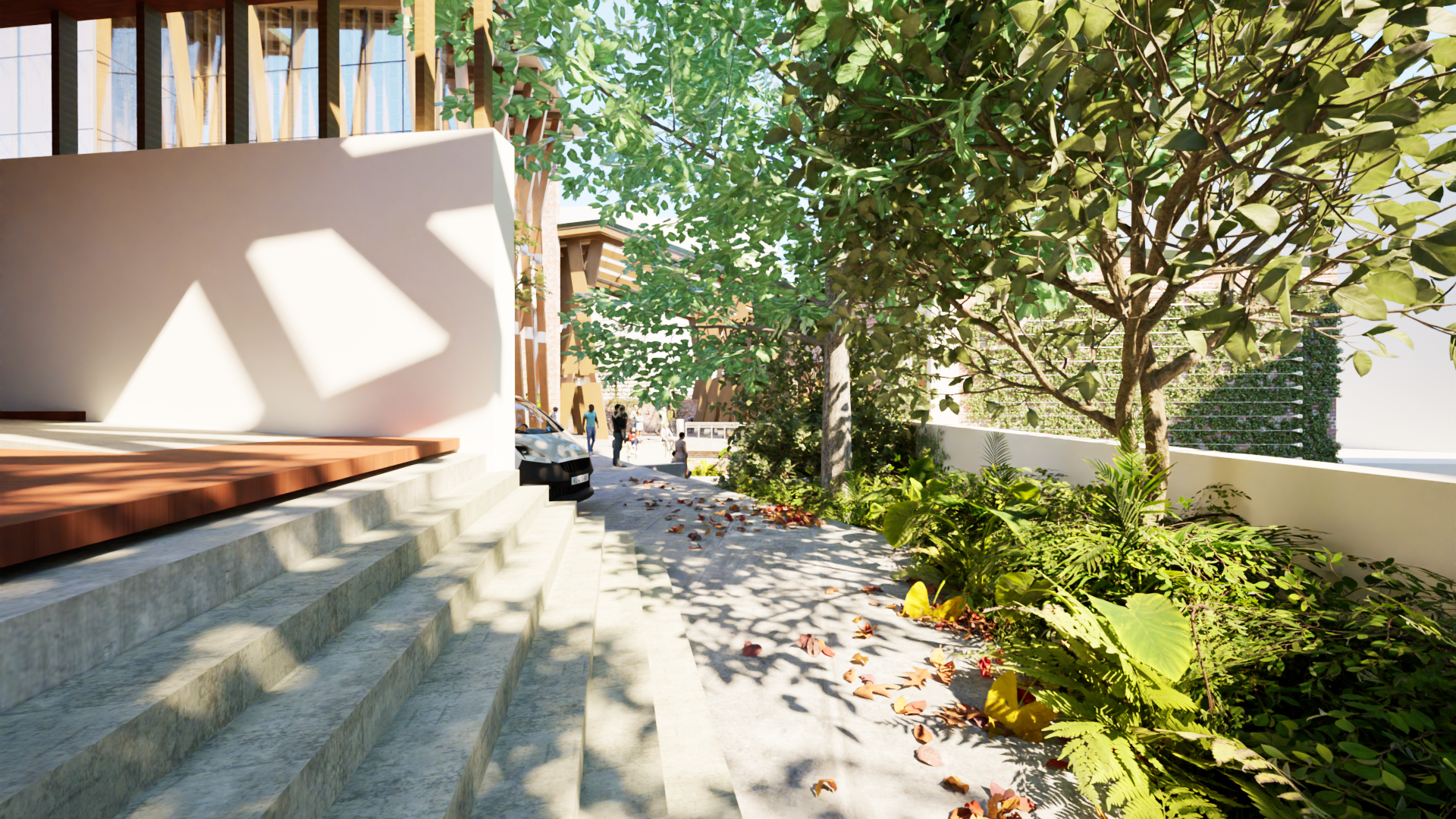

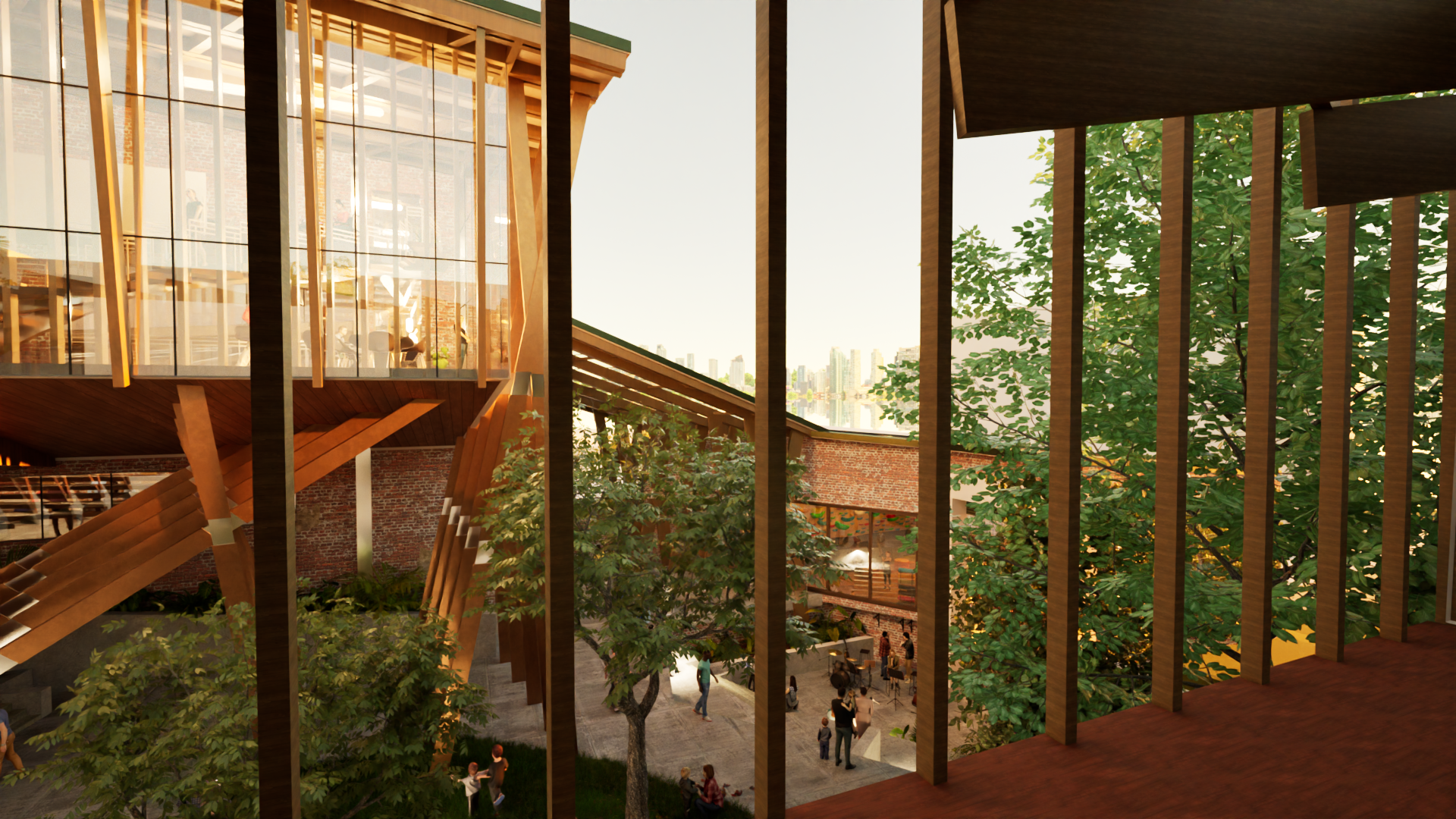

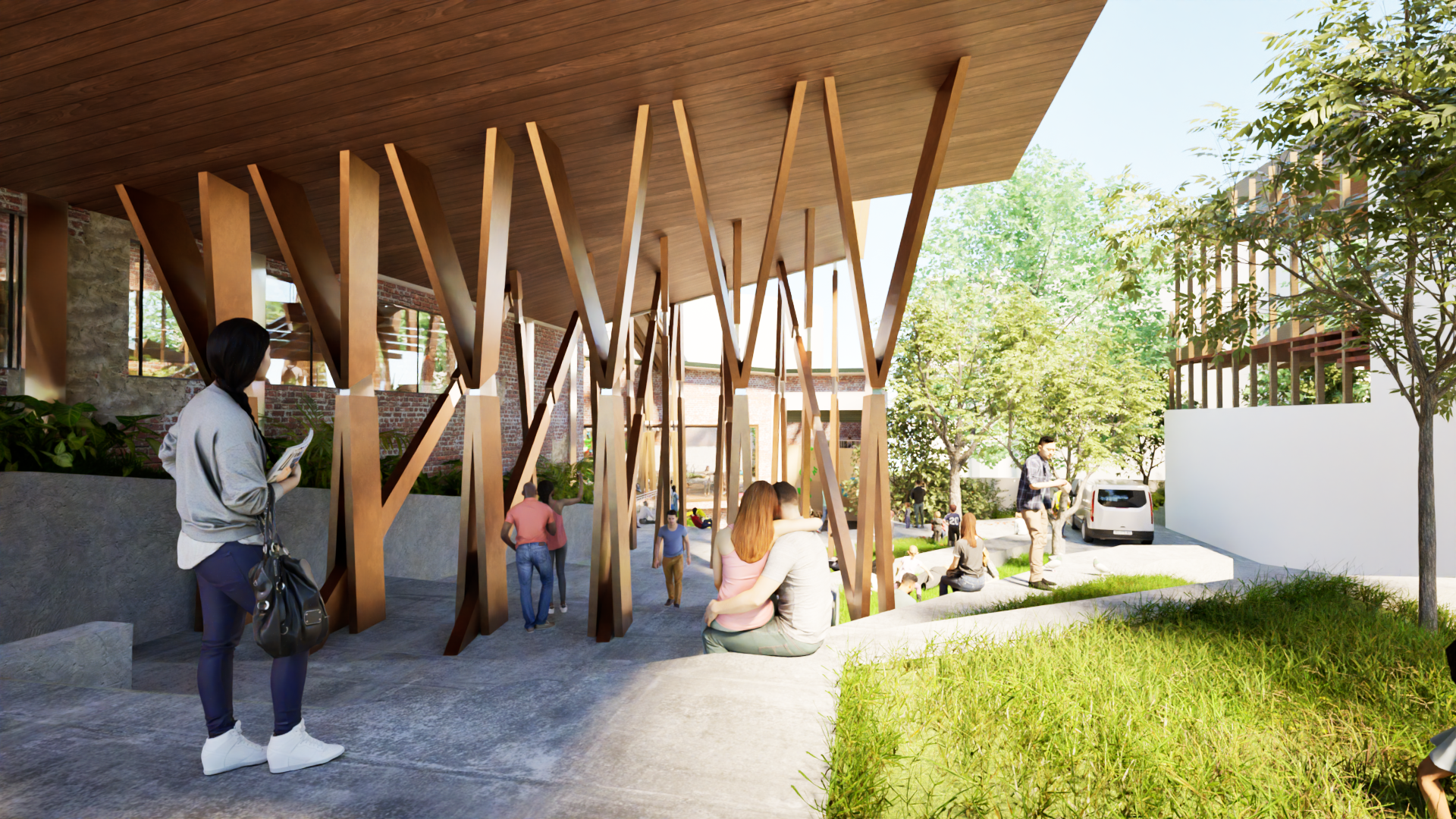

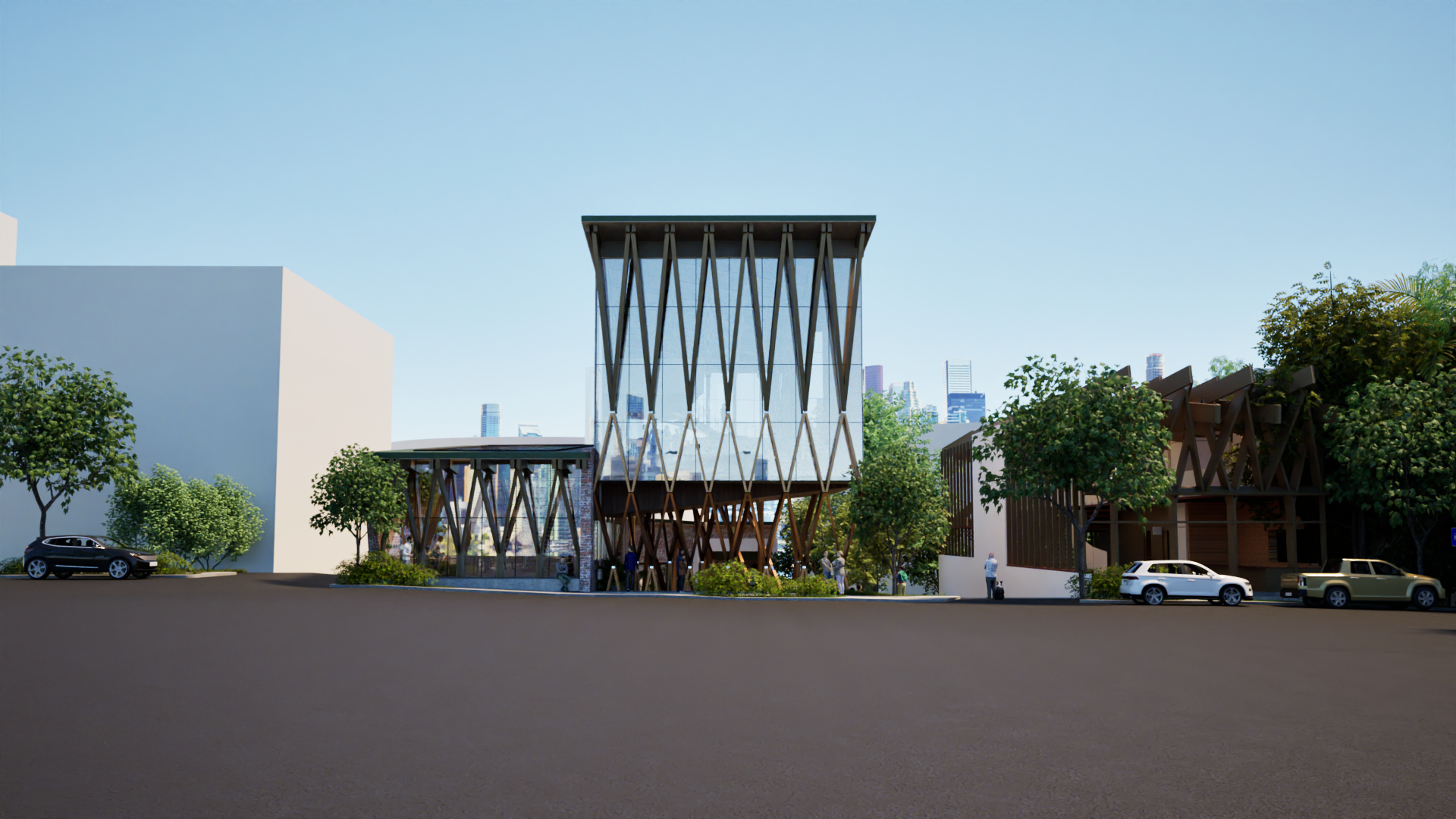

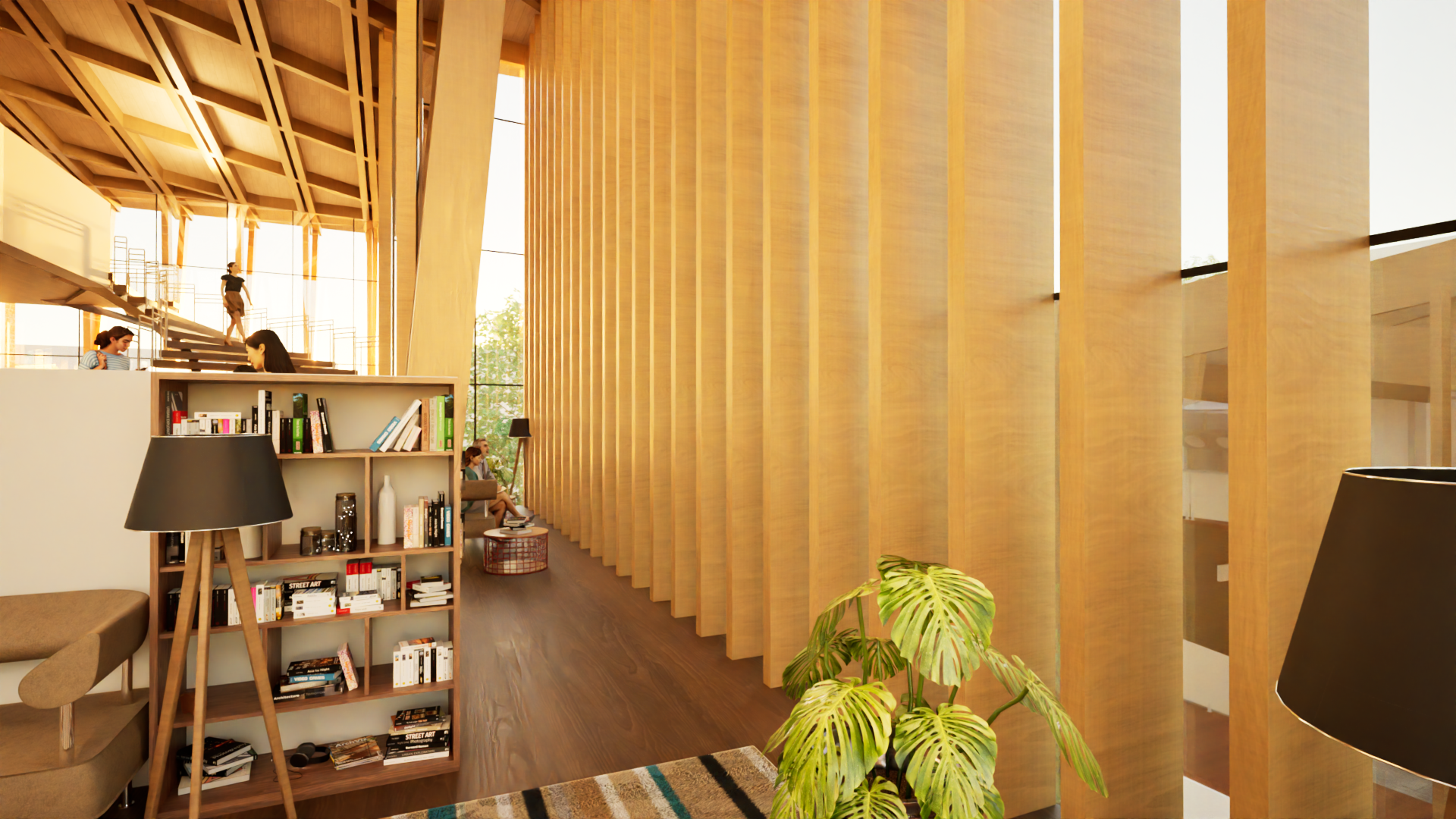

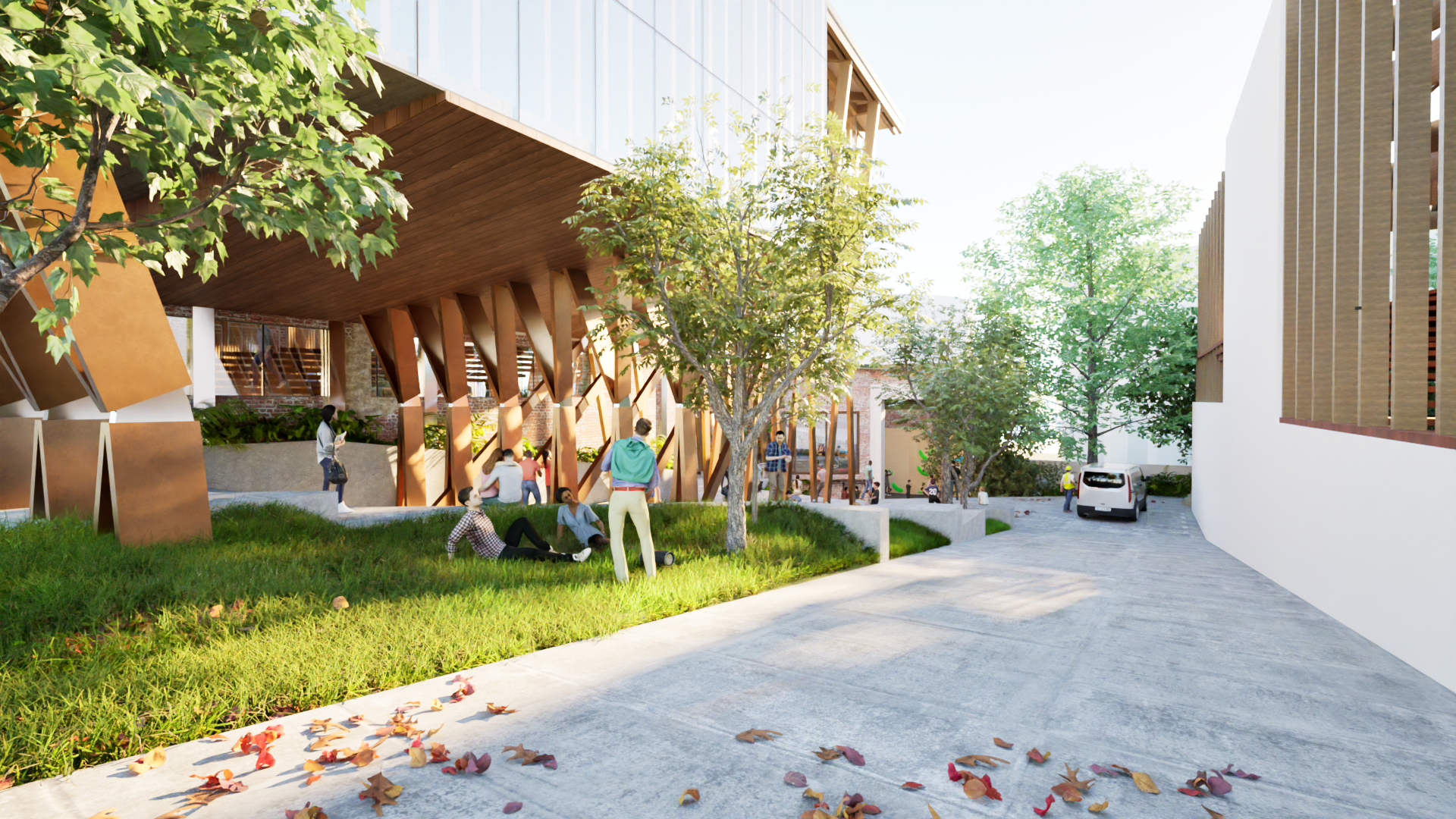

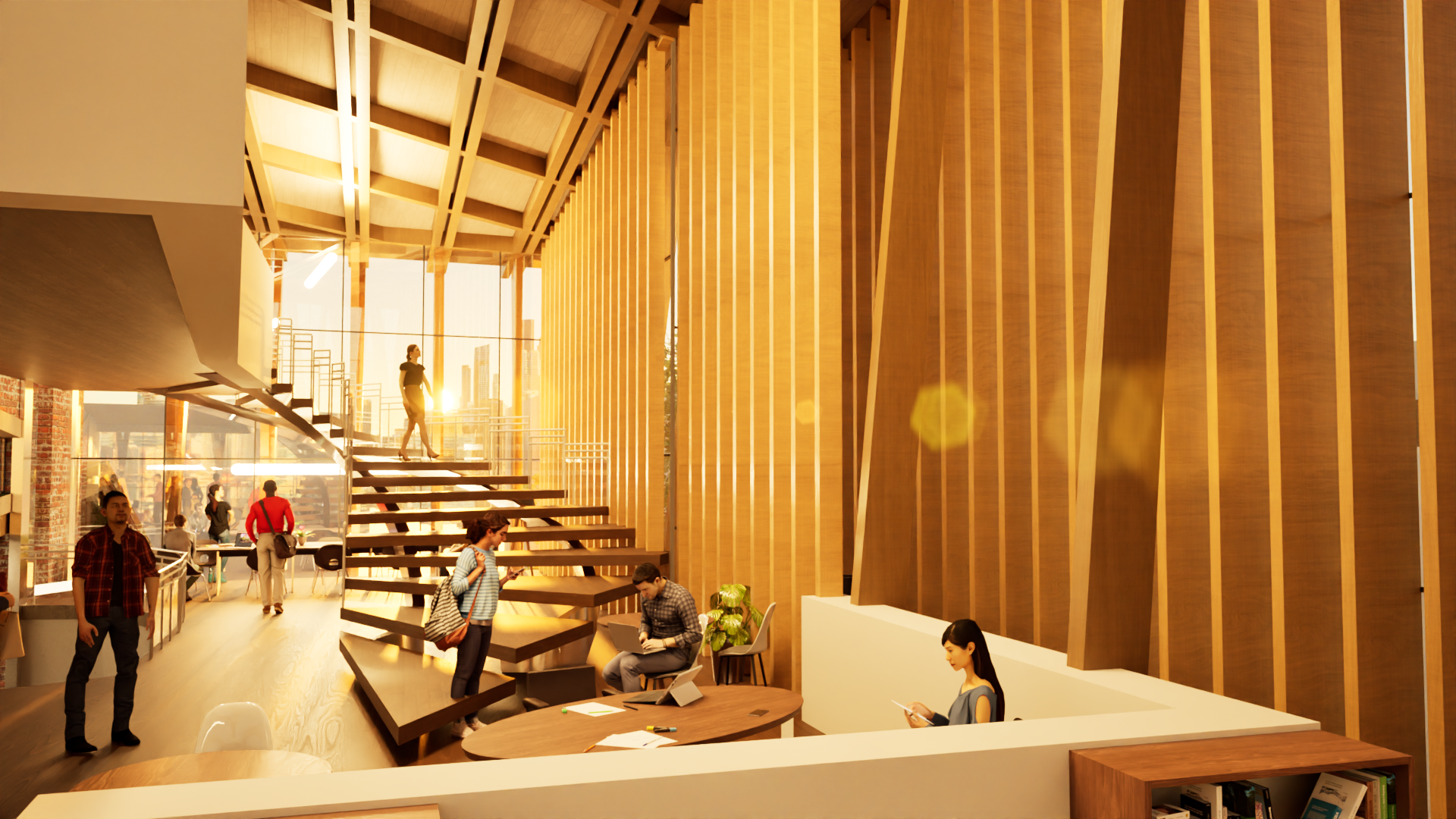

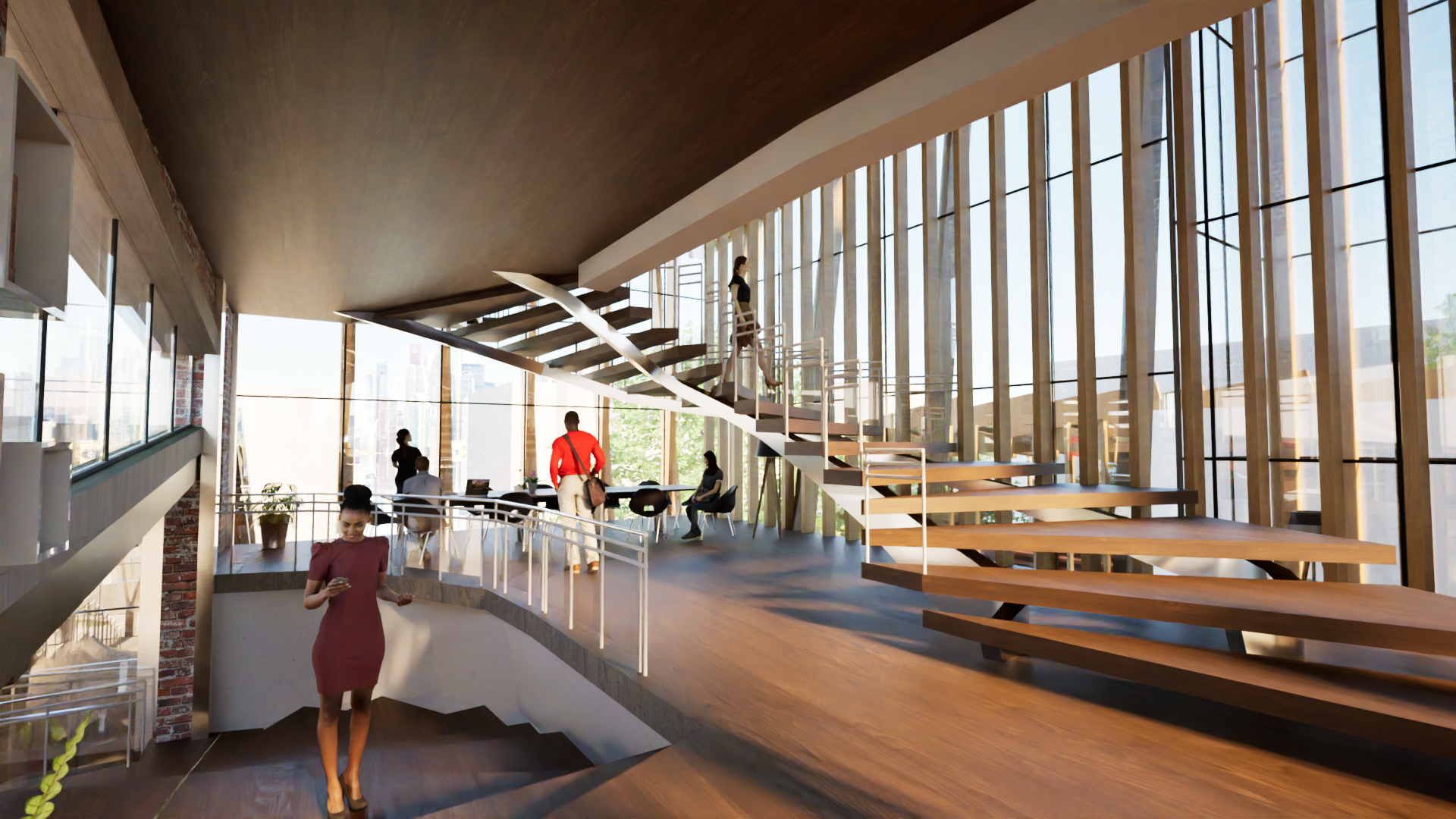

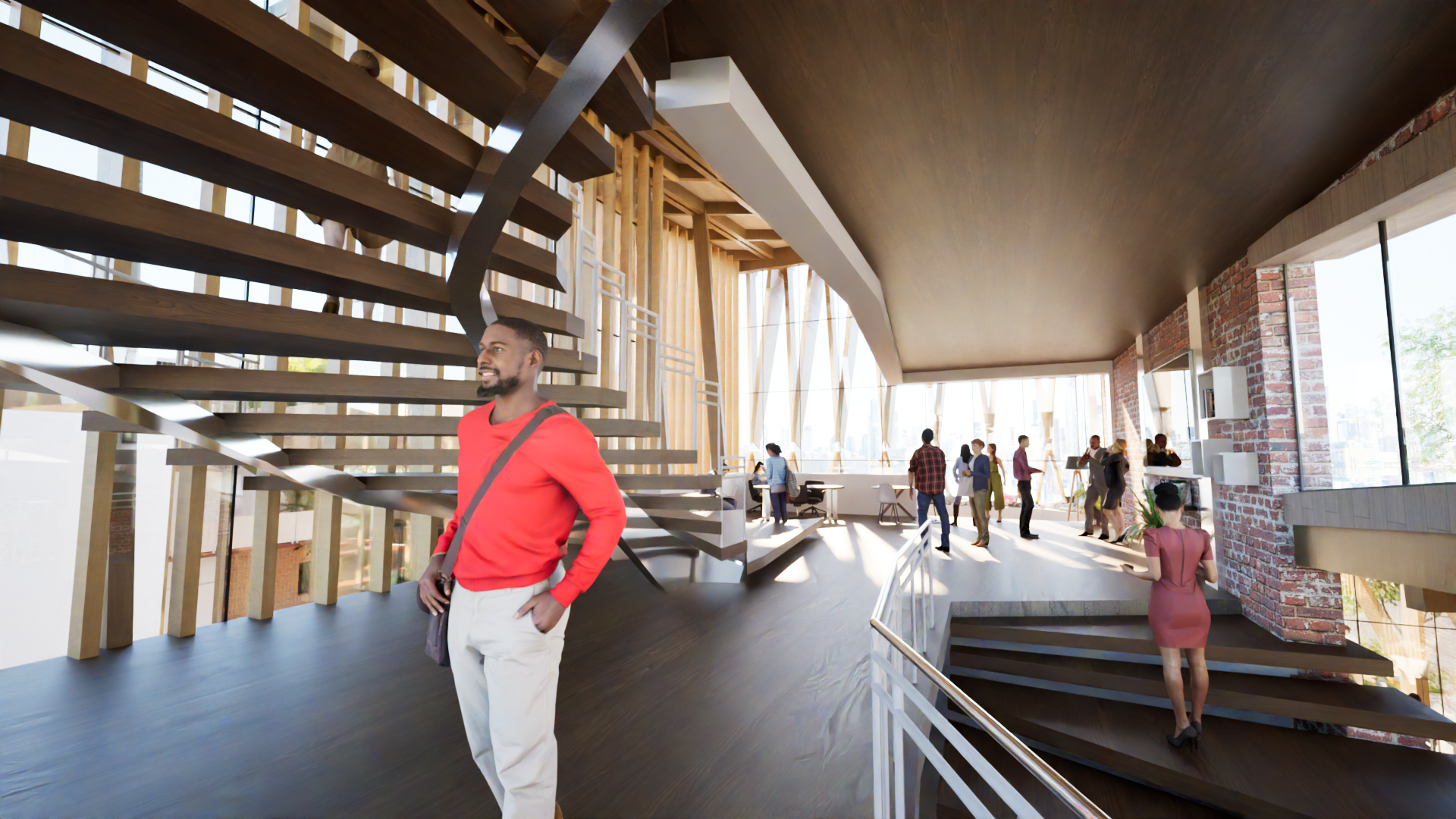

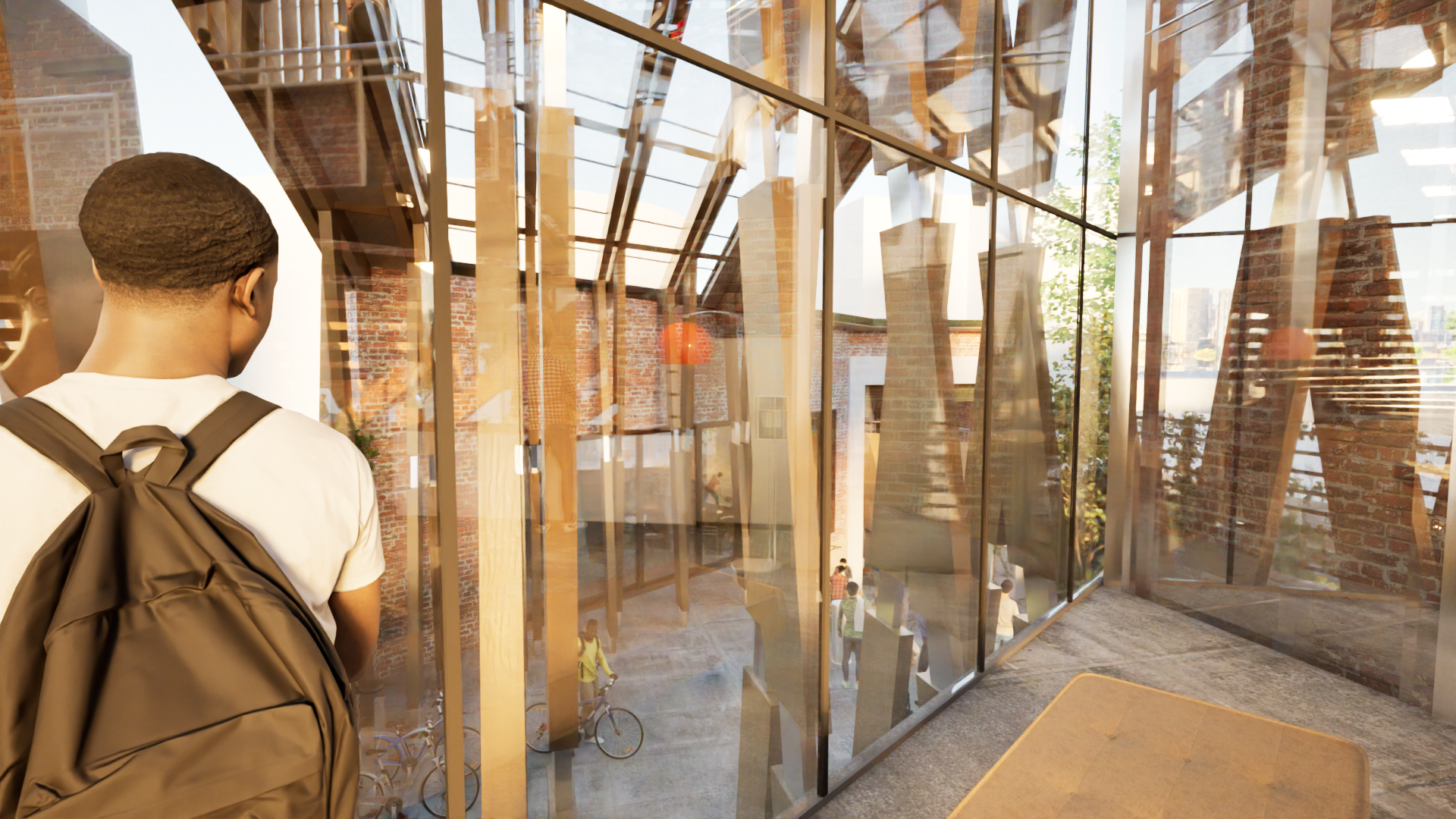

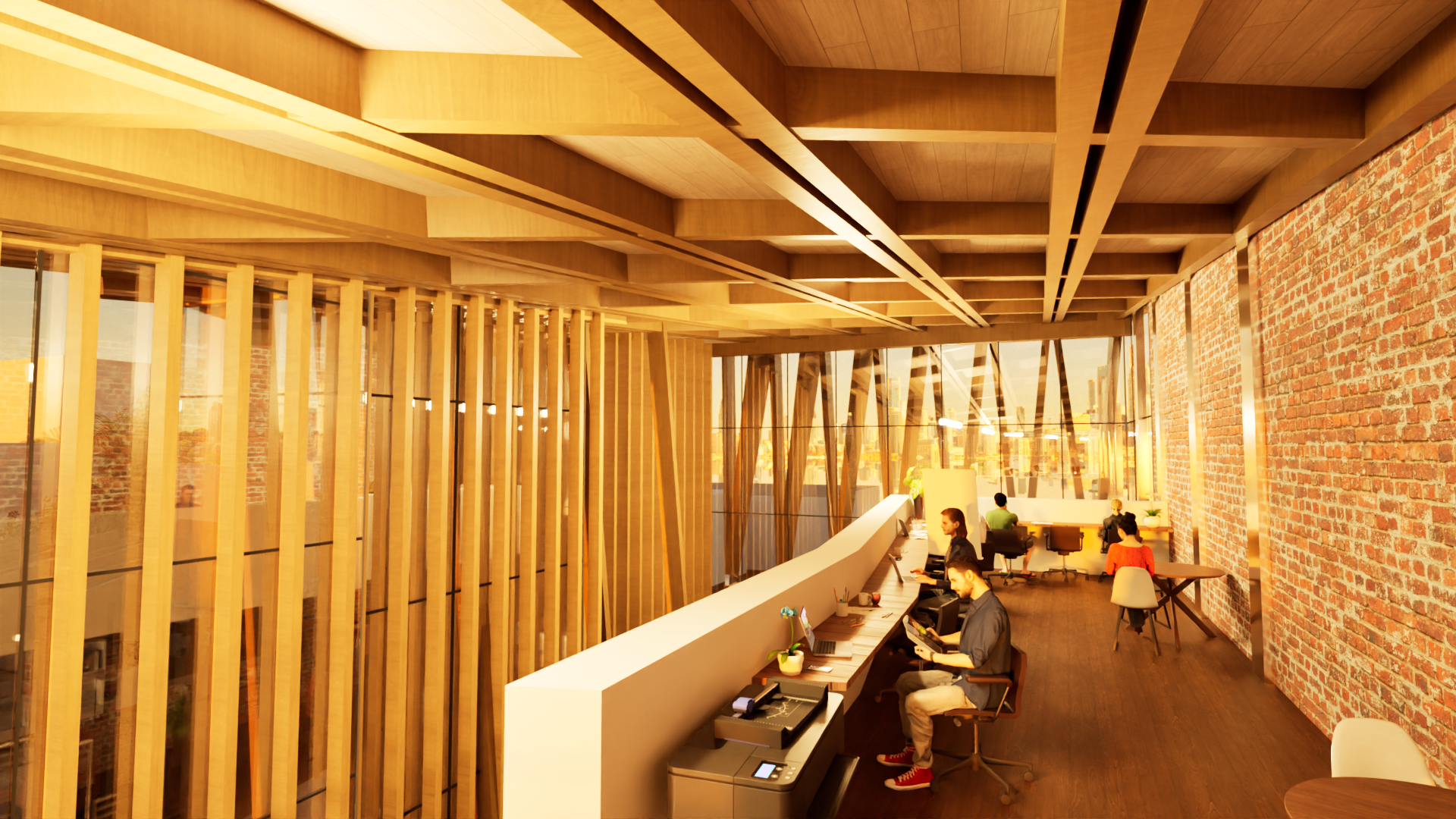

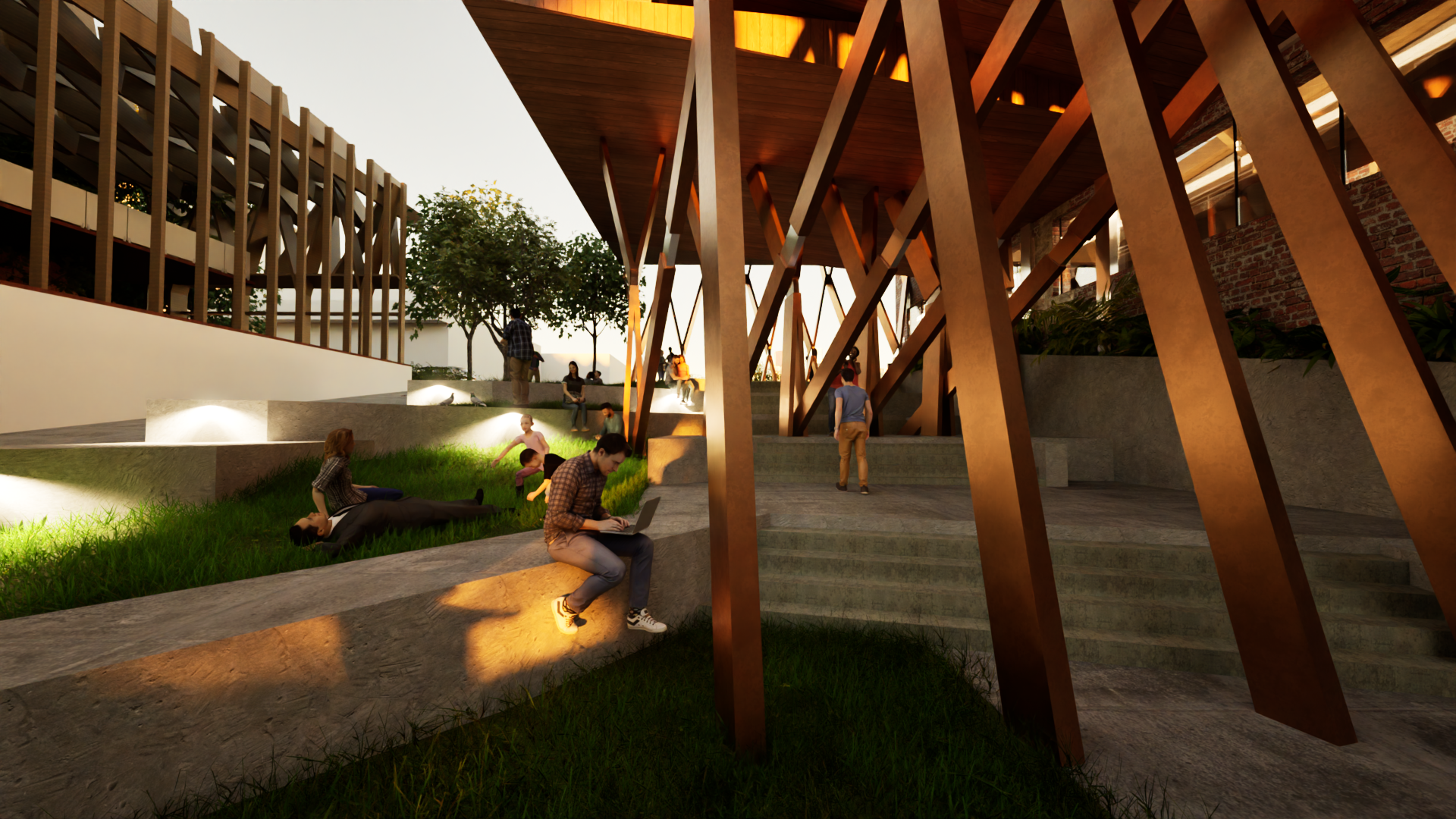

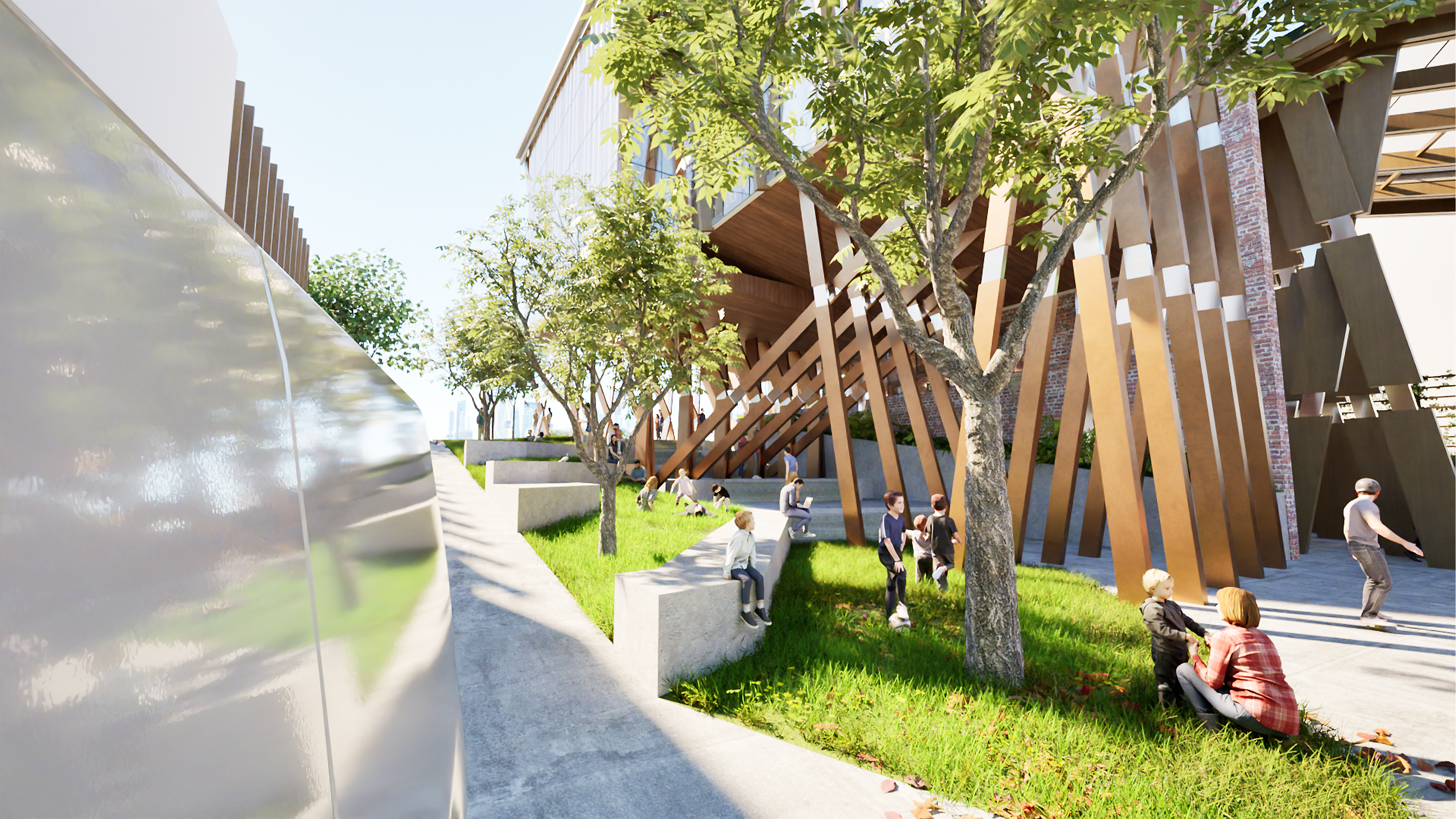

○ Vignettes

○ Diagrams of Function

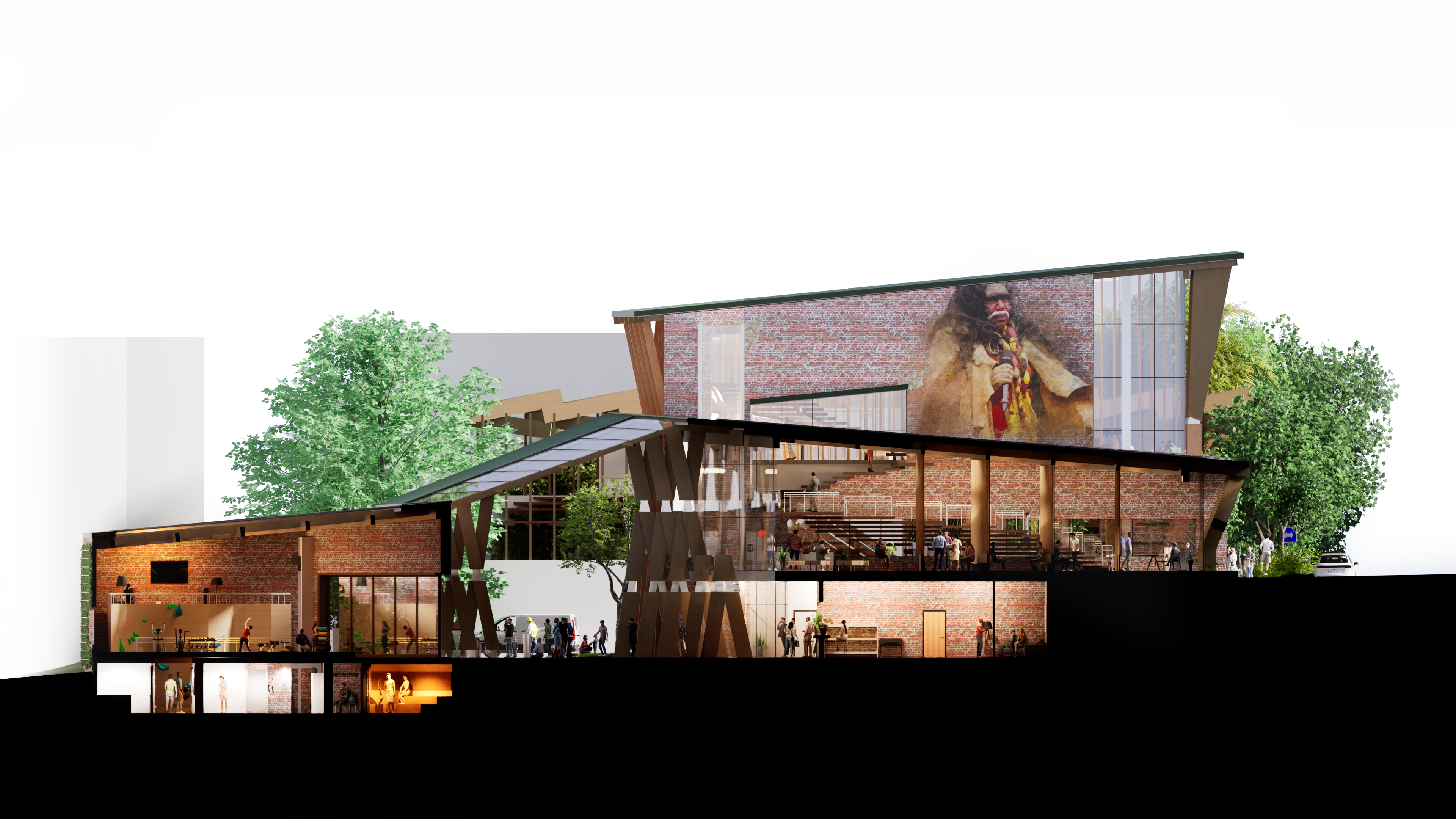

Section 1 (south)

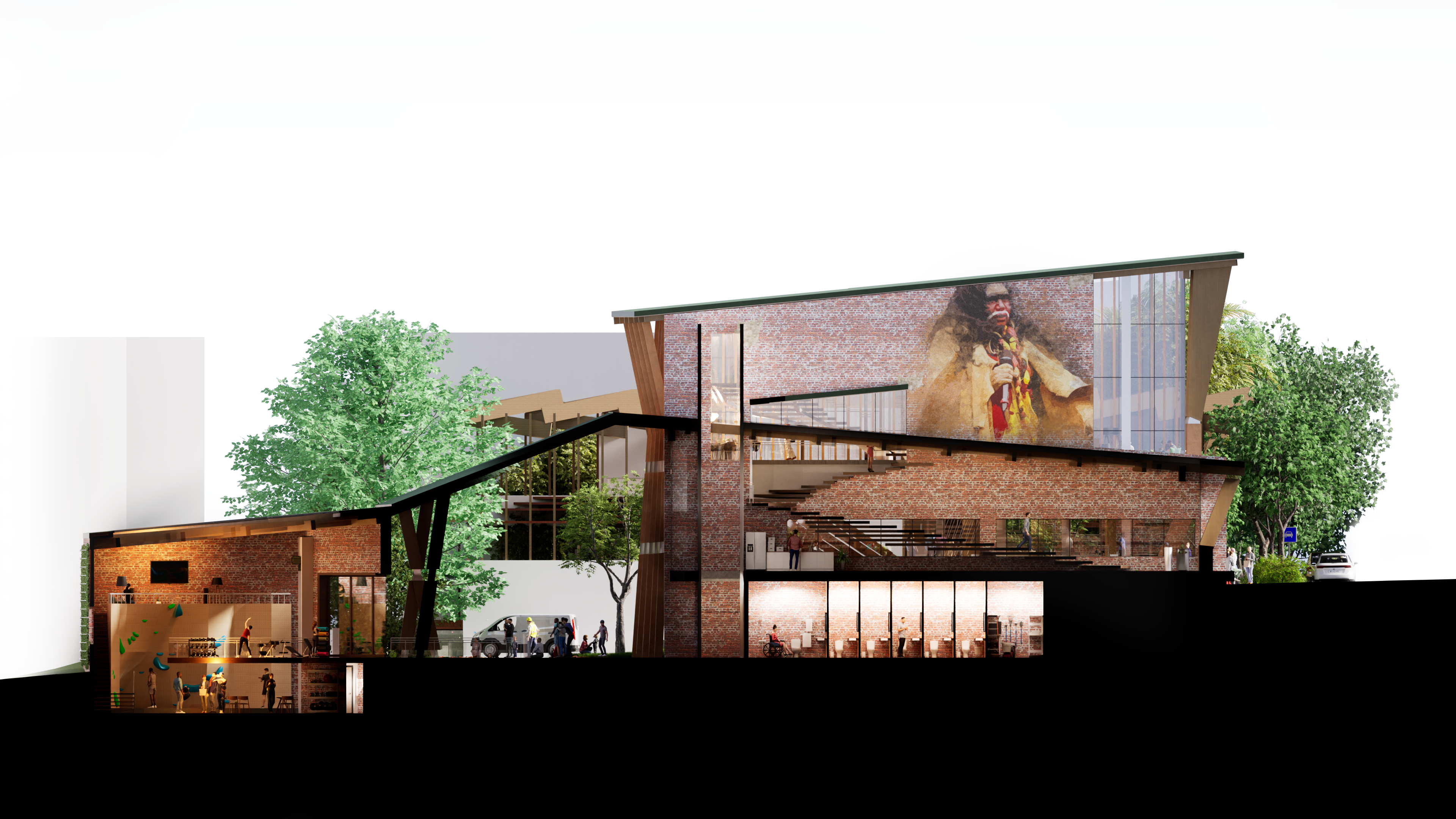

Section 2 (south)

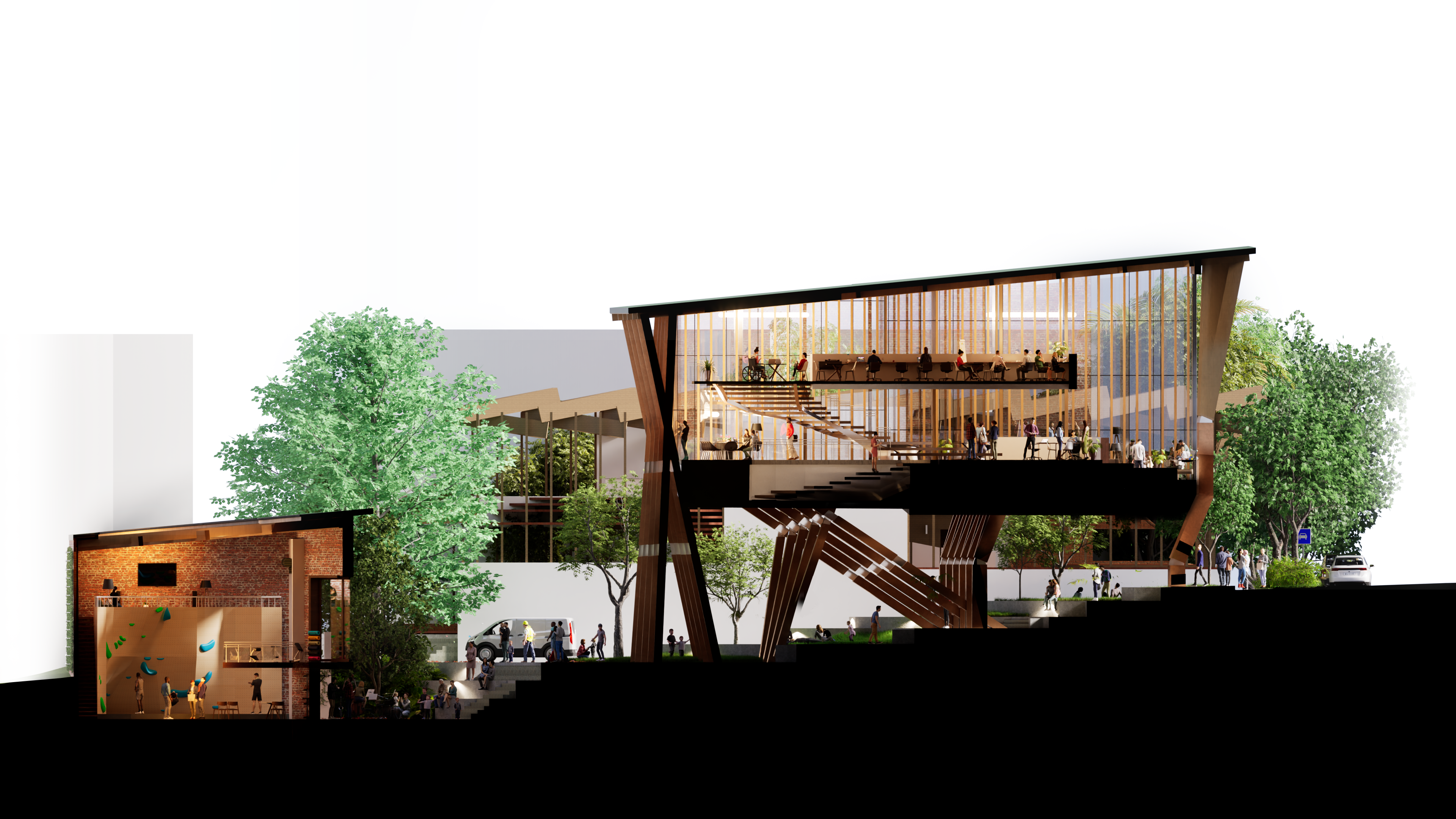

Section 3 (south)

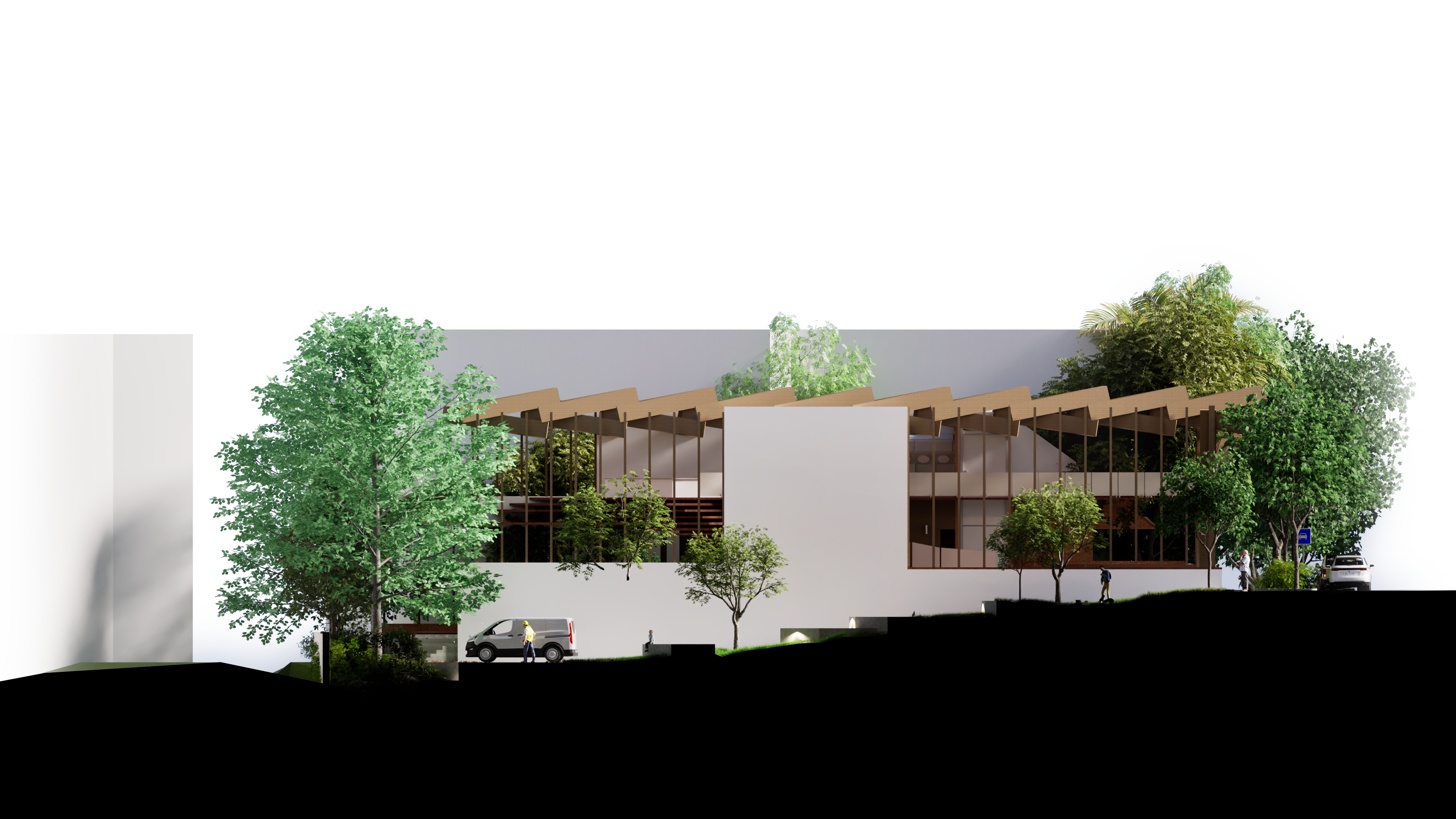

Section 4 (south)

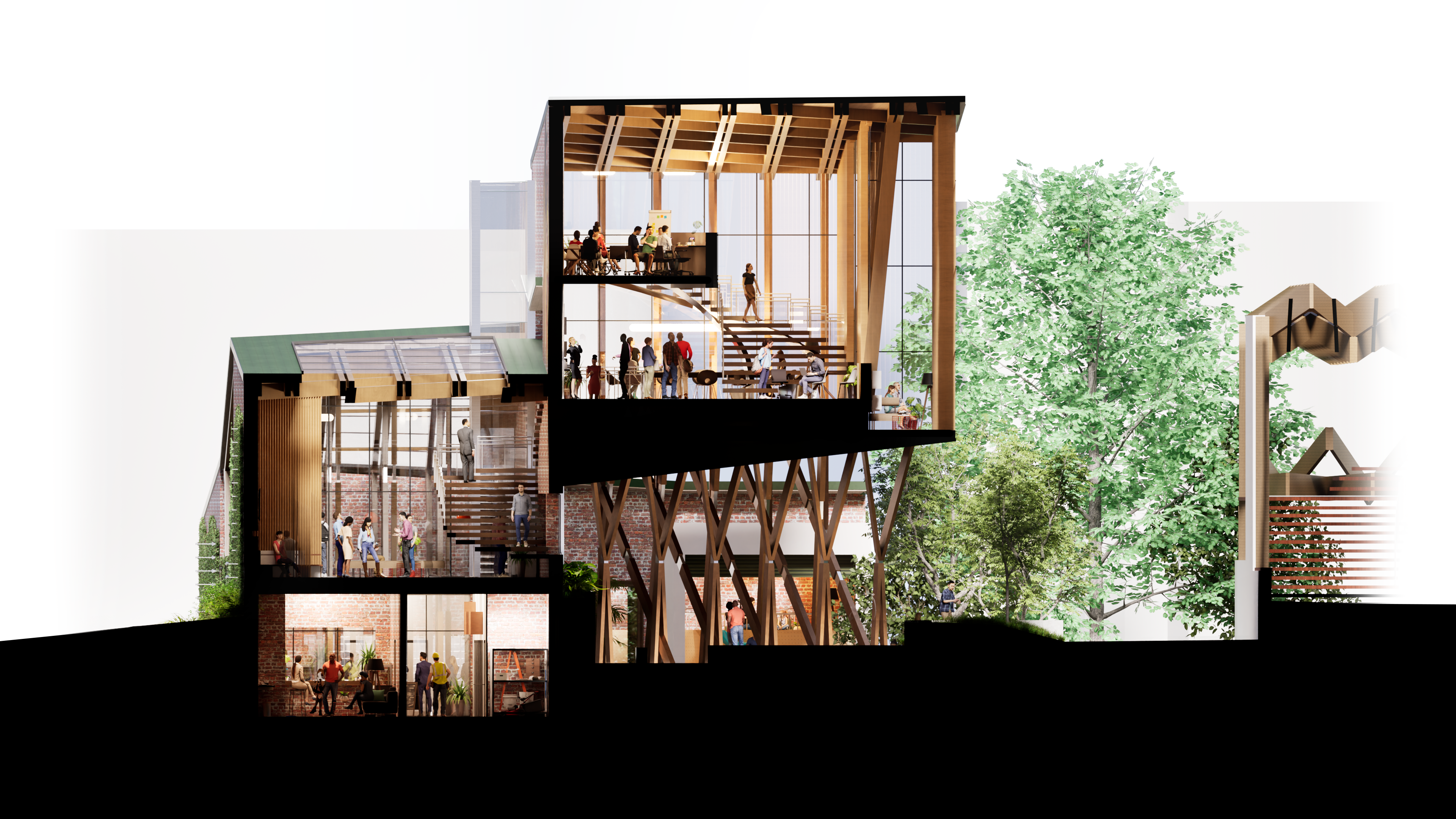

Section 5 (east)

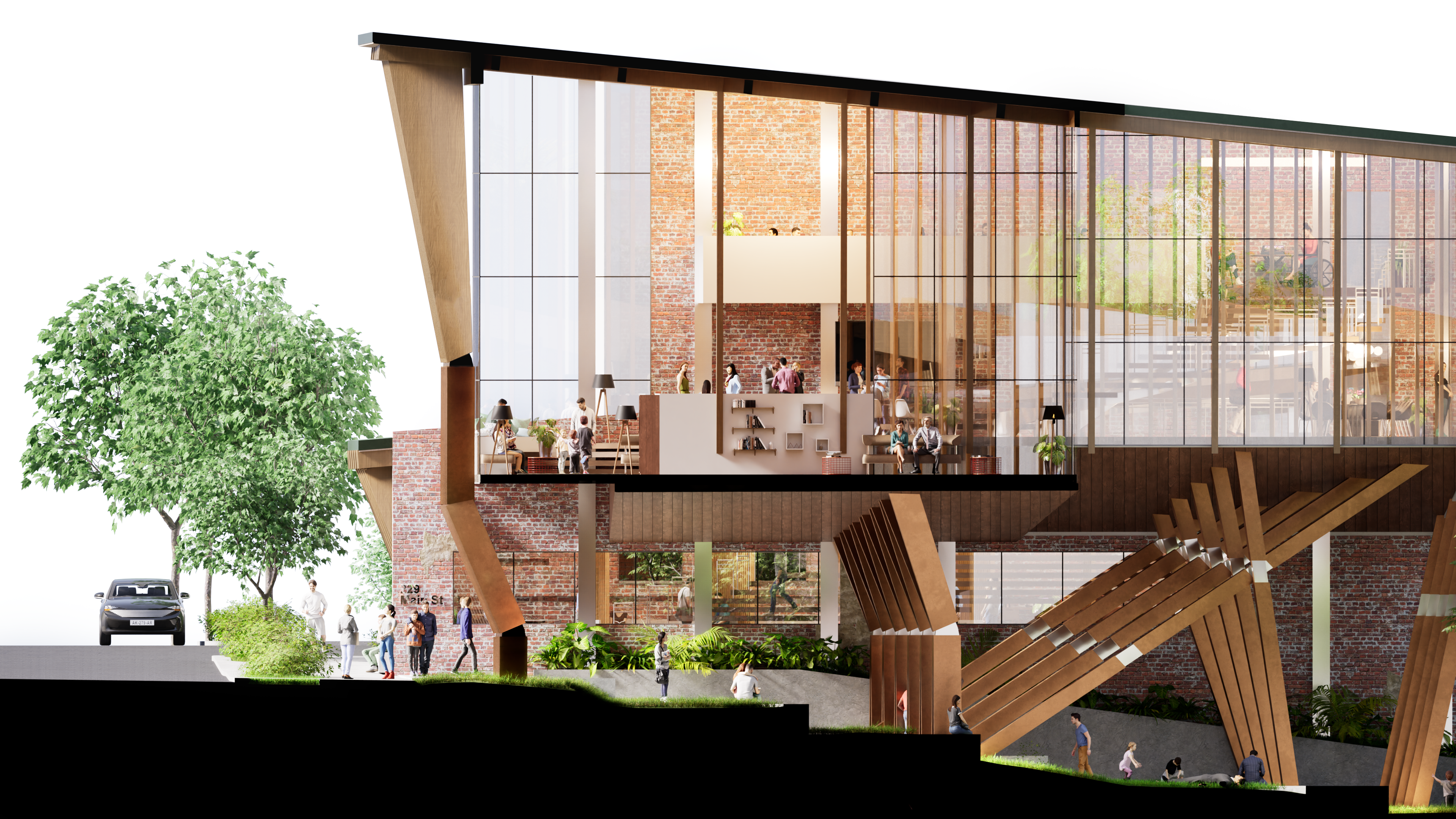

Section 6 (north)

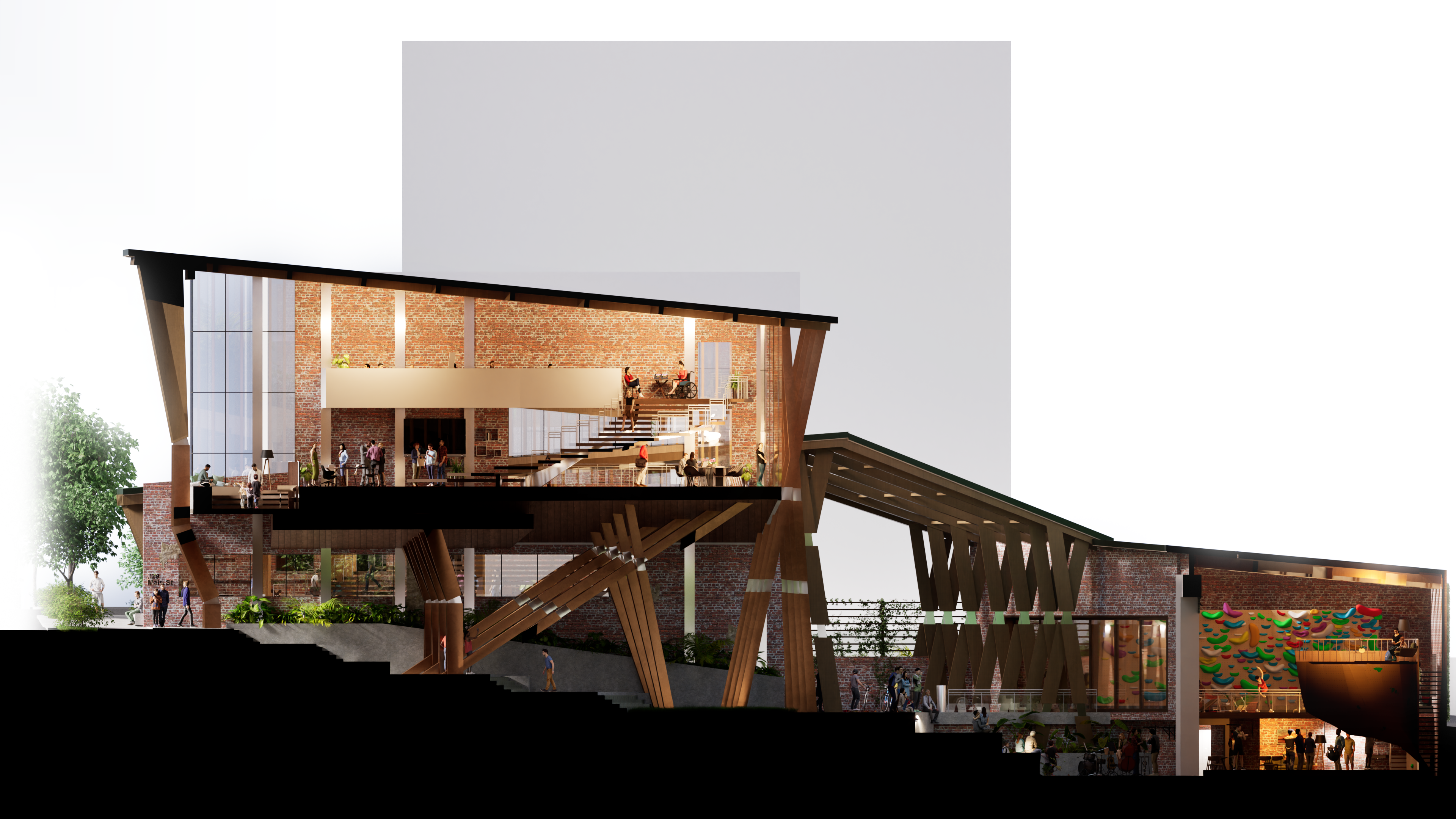

Section 7 (north)

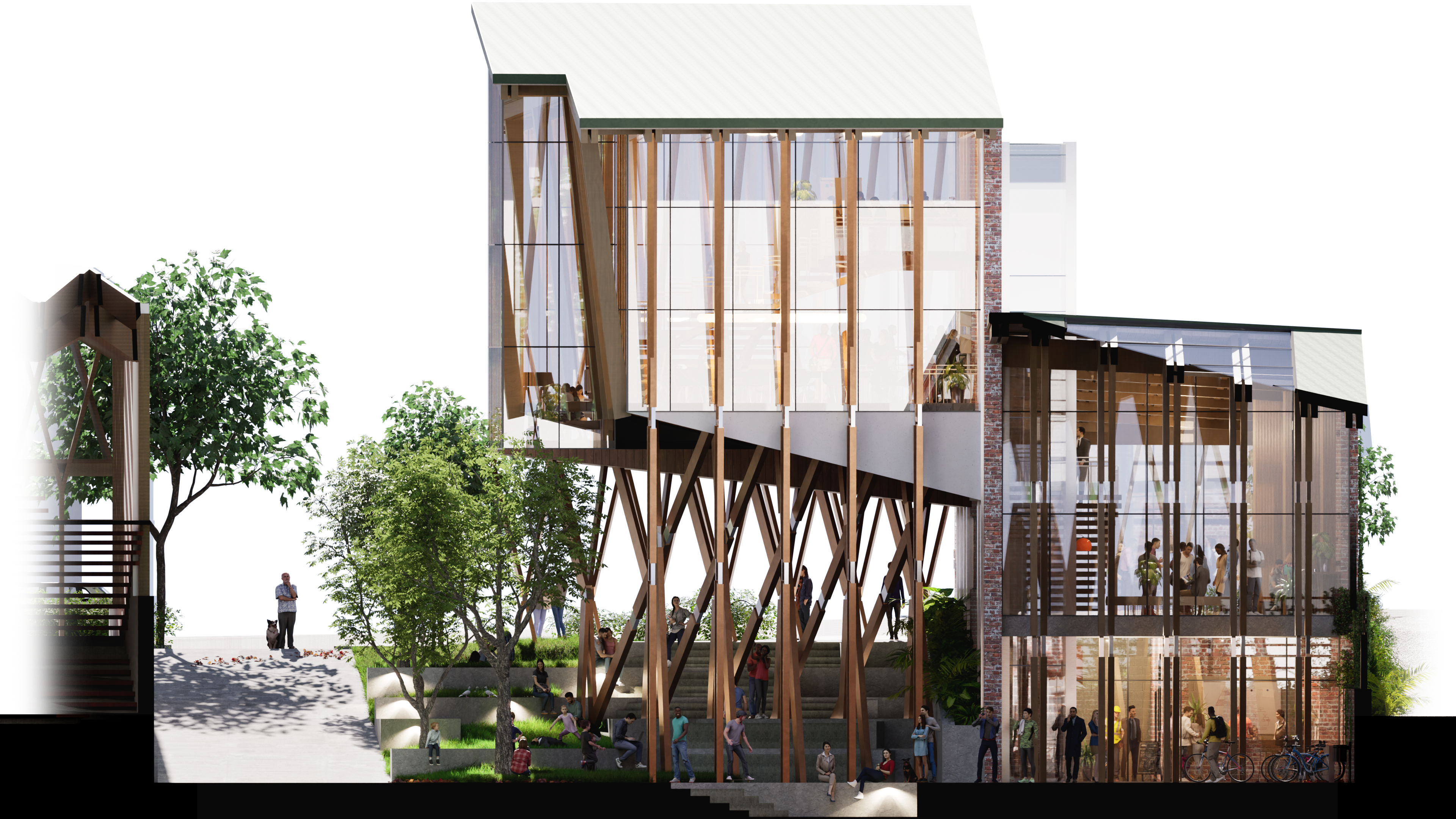

Section 8 (west)

Sections

These views showcase the multiple uses for each space; the functionality throughout the property and the flow of pedestrians.

Elevations

Showcase site boundaries on each site and building frontage.

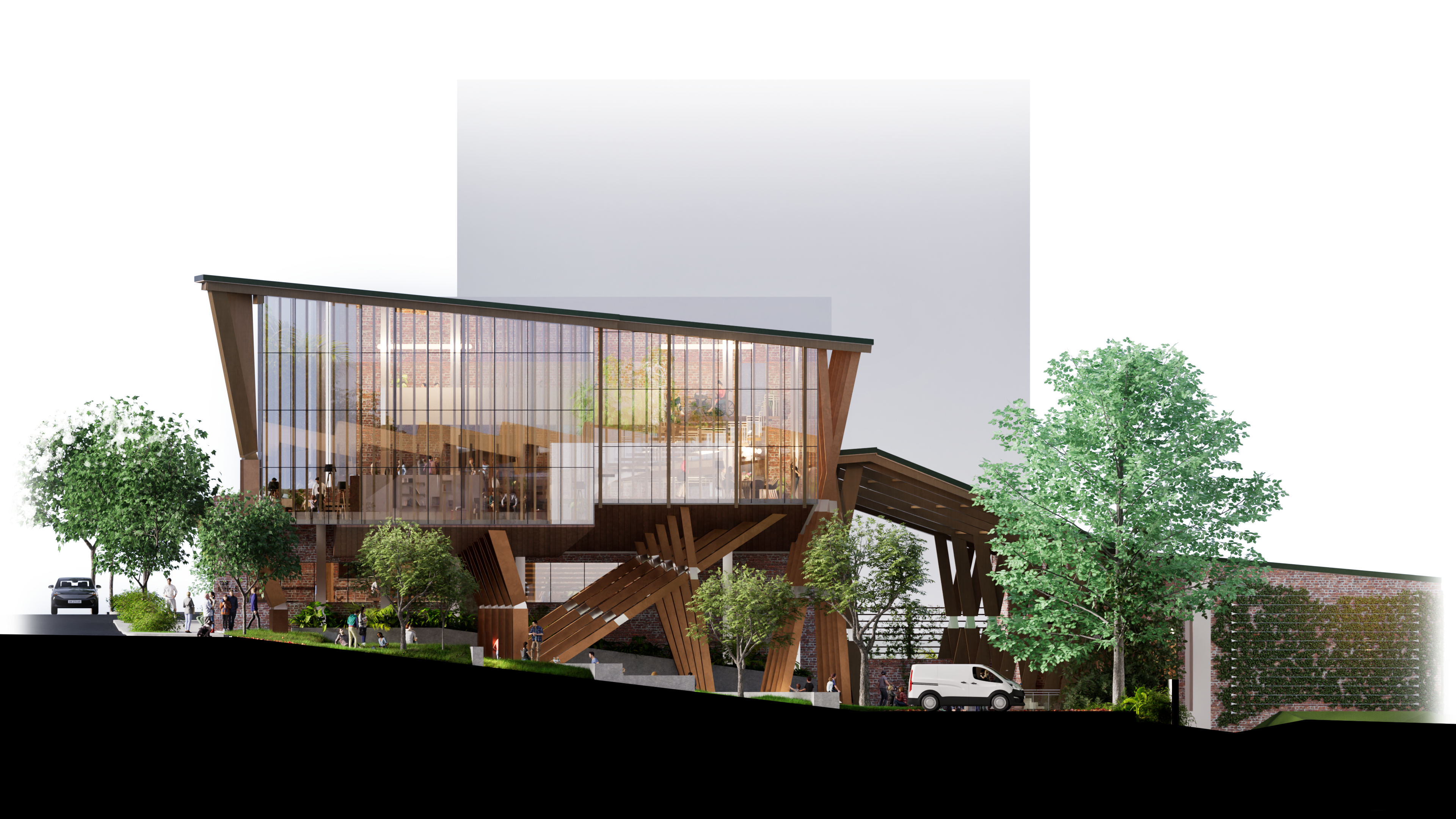

Elevation 1 North

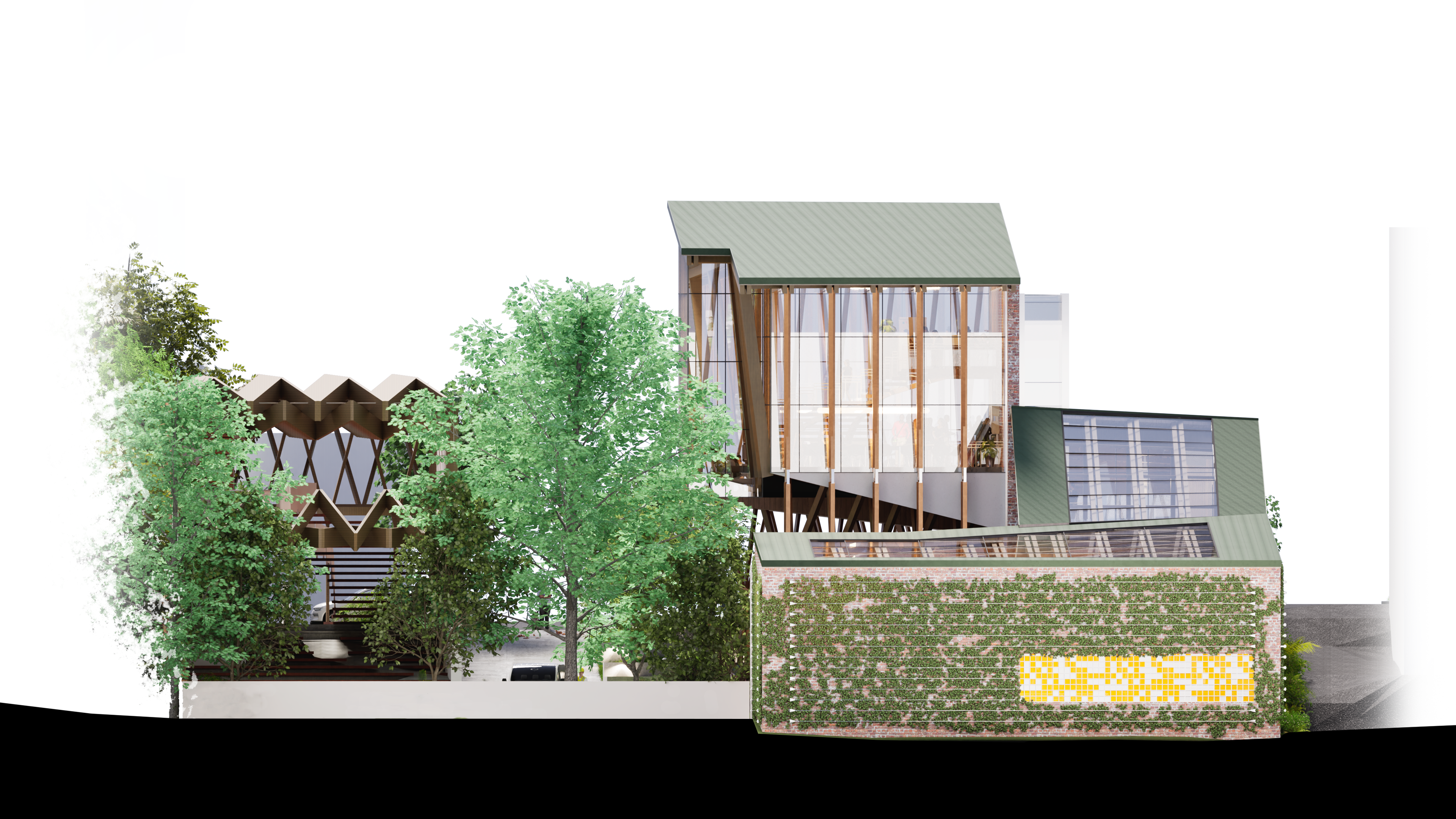

Elevation 2 West

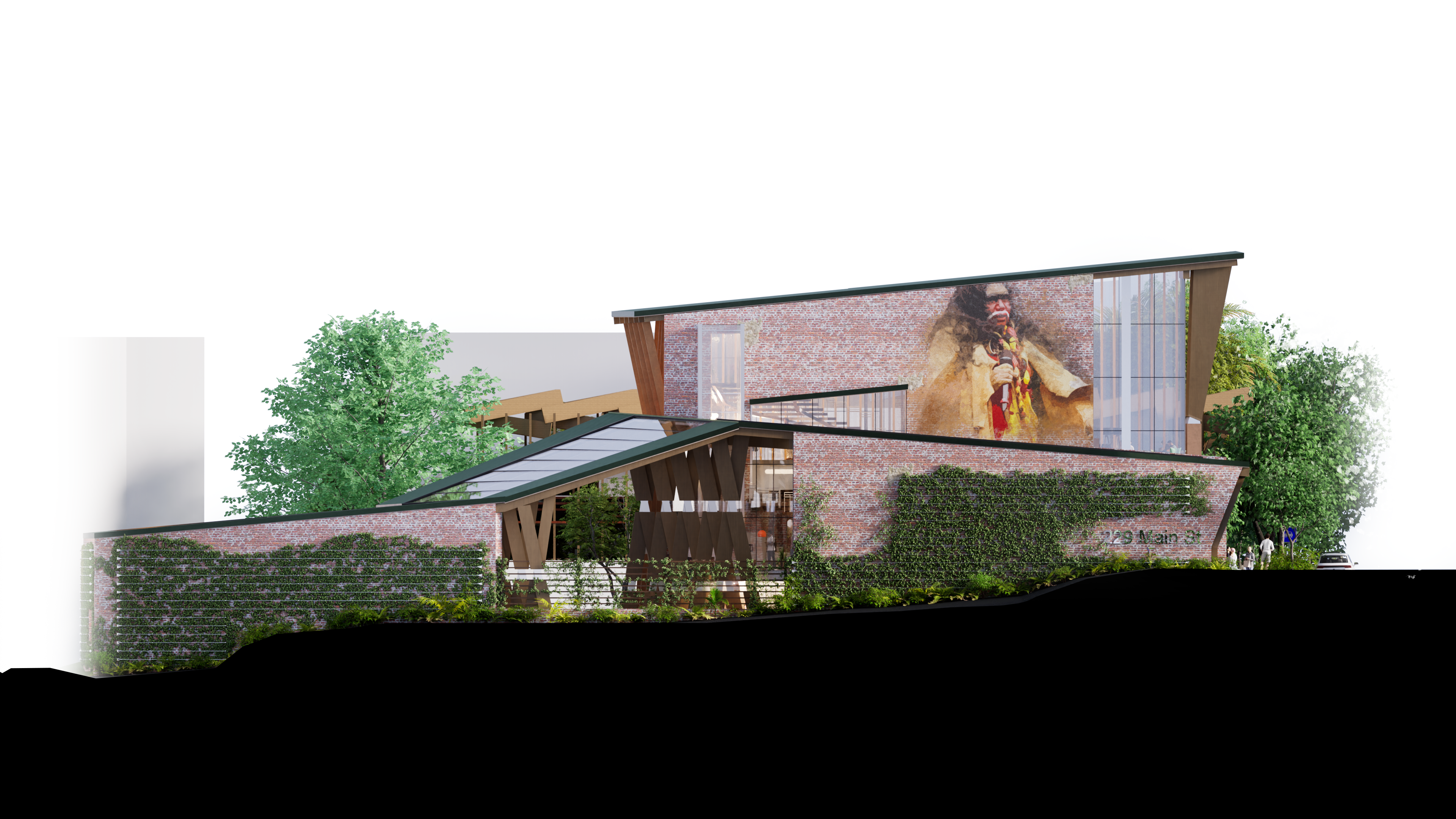

Elevation 3 South

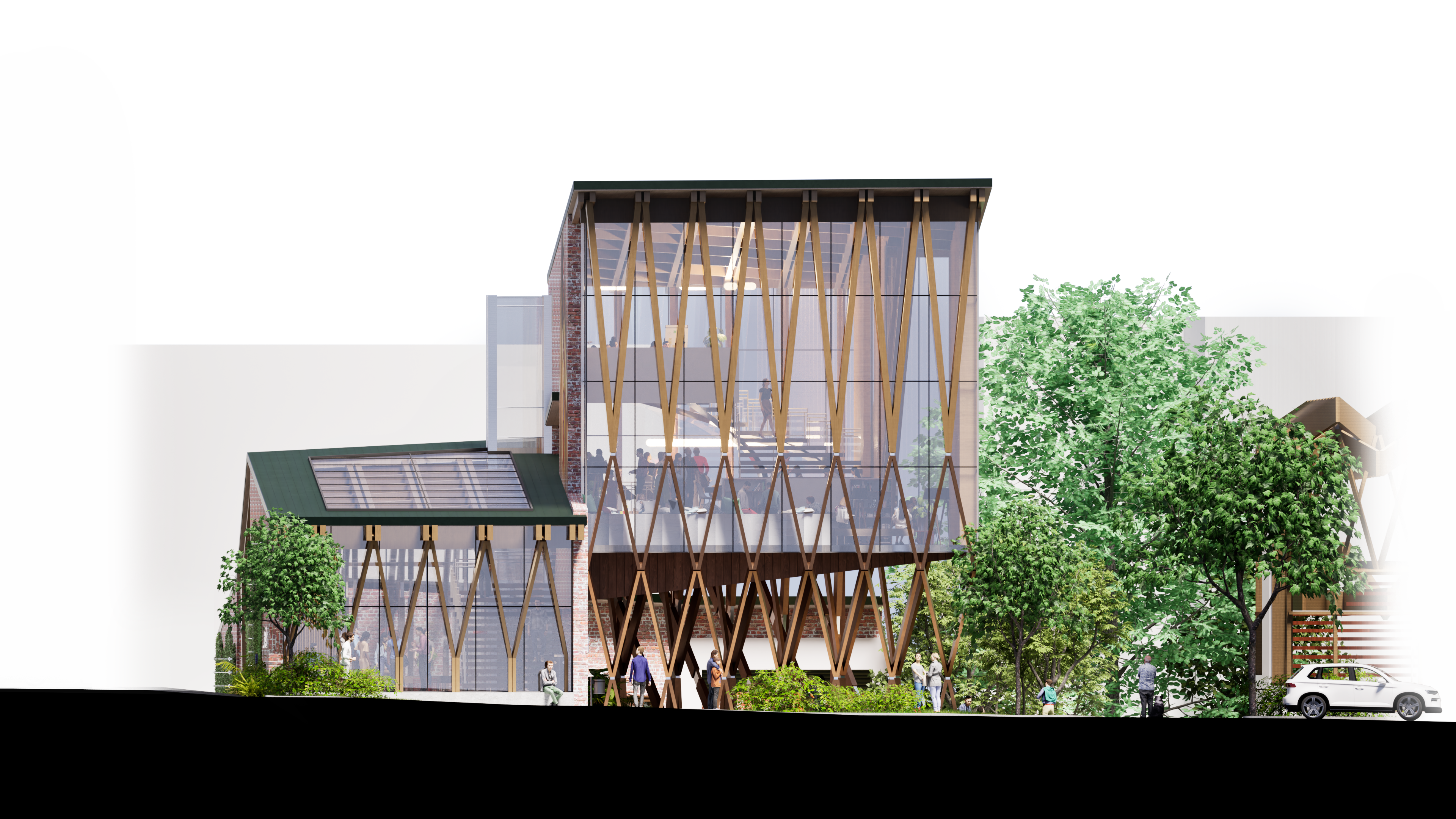

Elevation 4 East

Diagrams of function and flow & Space

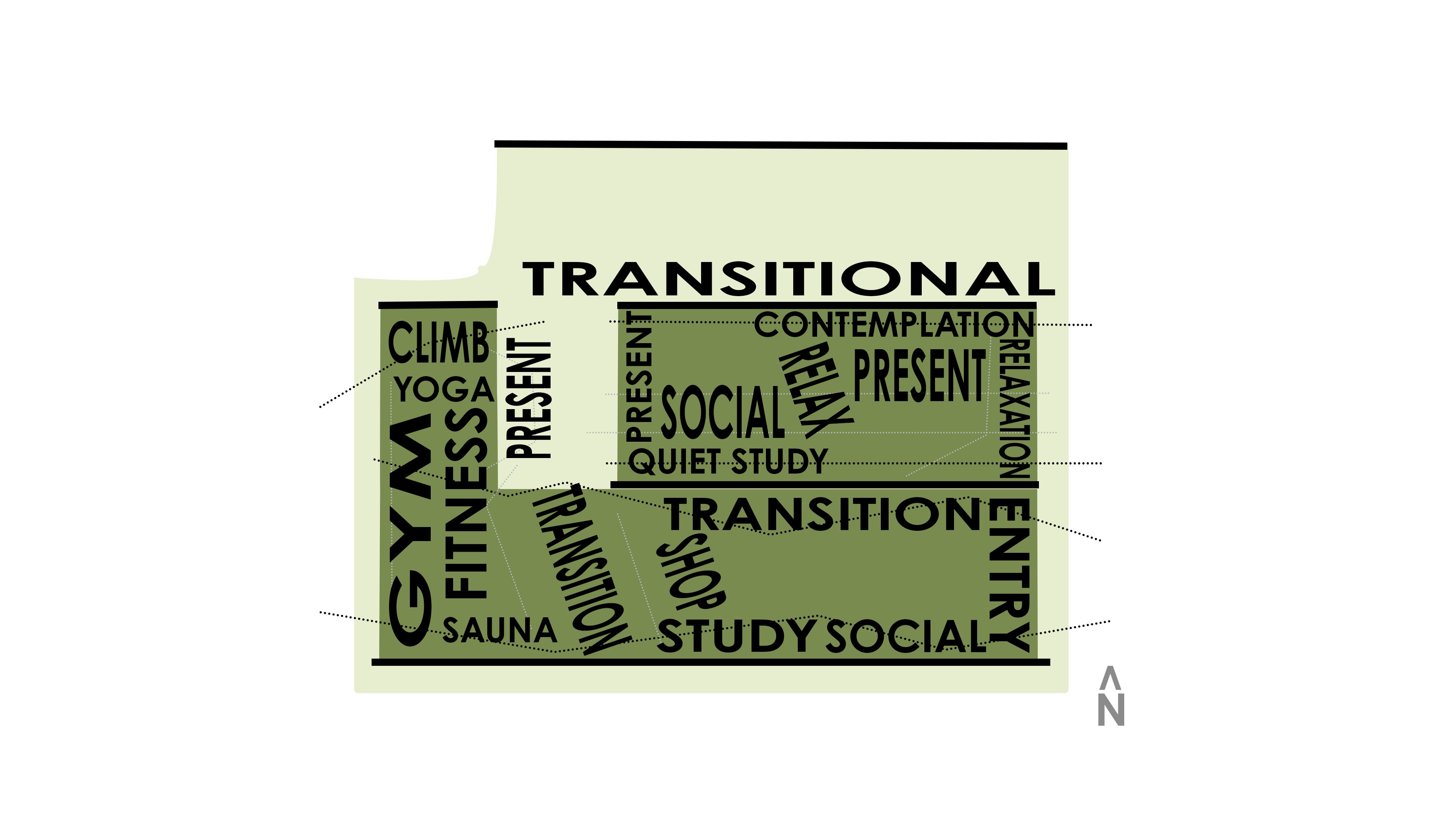

○ Functionality Diagram: how I divided the space into transitional and stationary areas to create scenes and moments throughout the site for every type of person visiting.

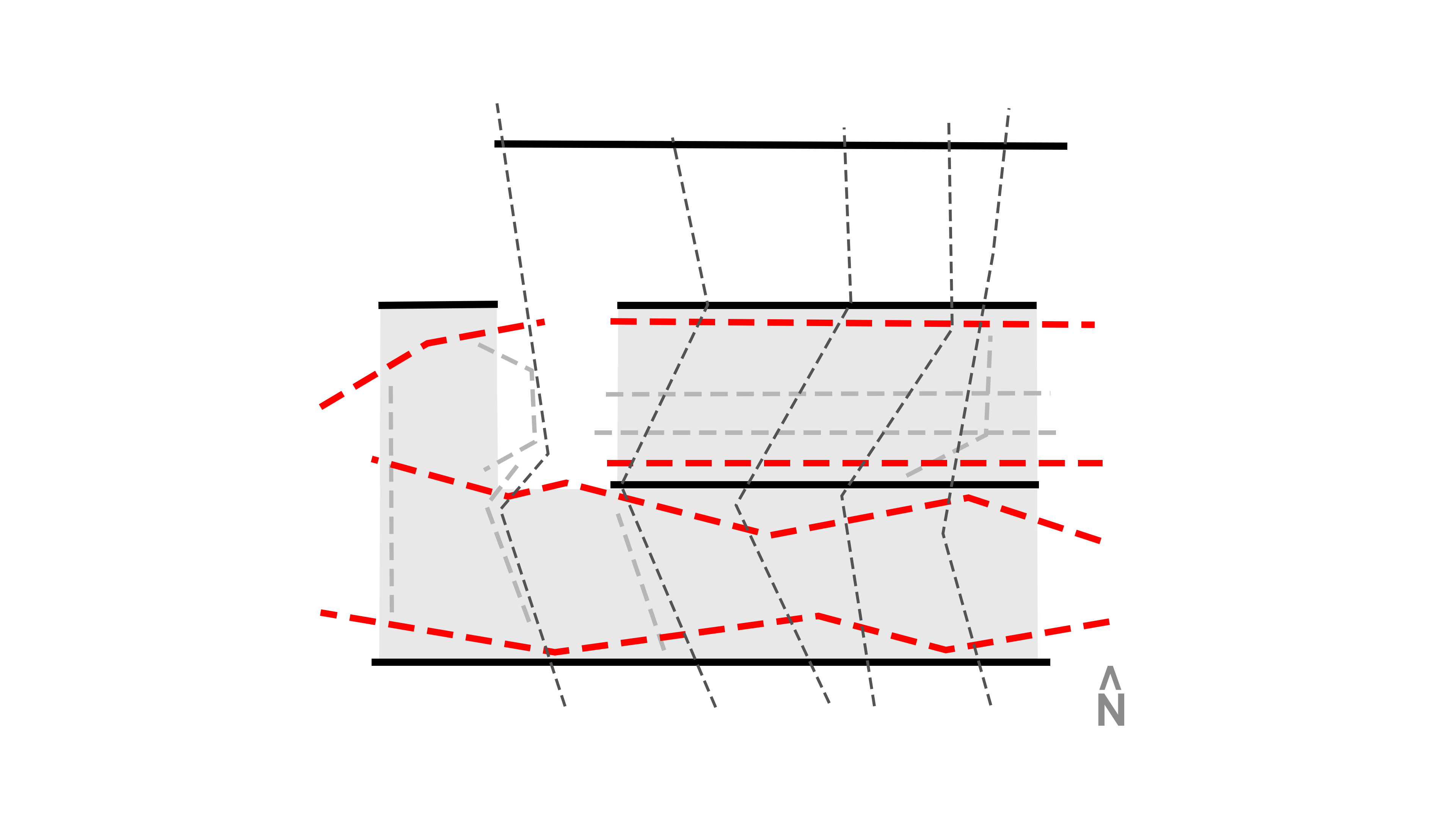

○ Walls & Division Diagram: how I divided the space in a more physical 'linework' sense using 'zig-zagging' mostly linear wide spaces so that pedestrians can always see into other spaces; daydream, travel, and plan what and where to go next...

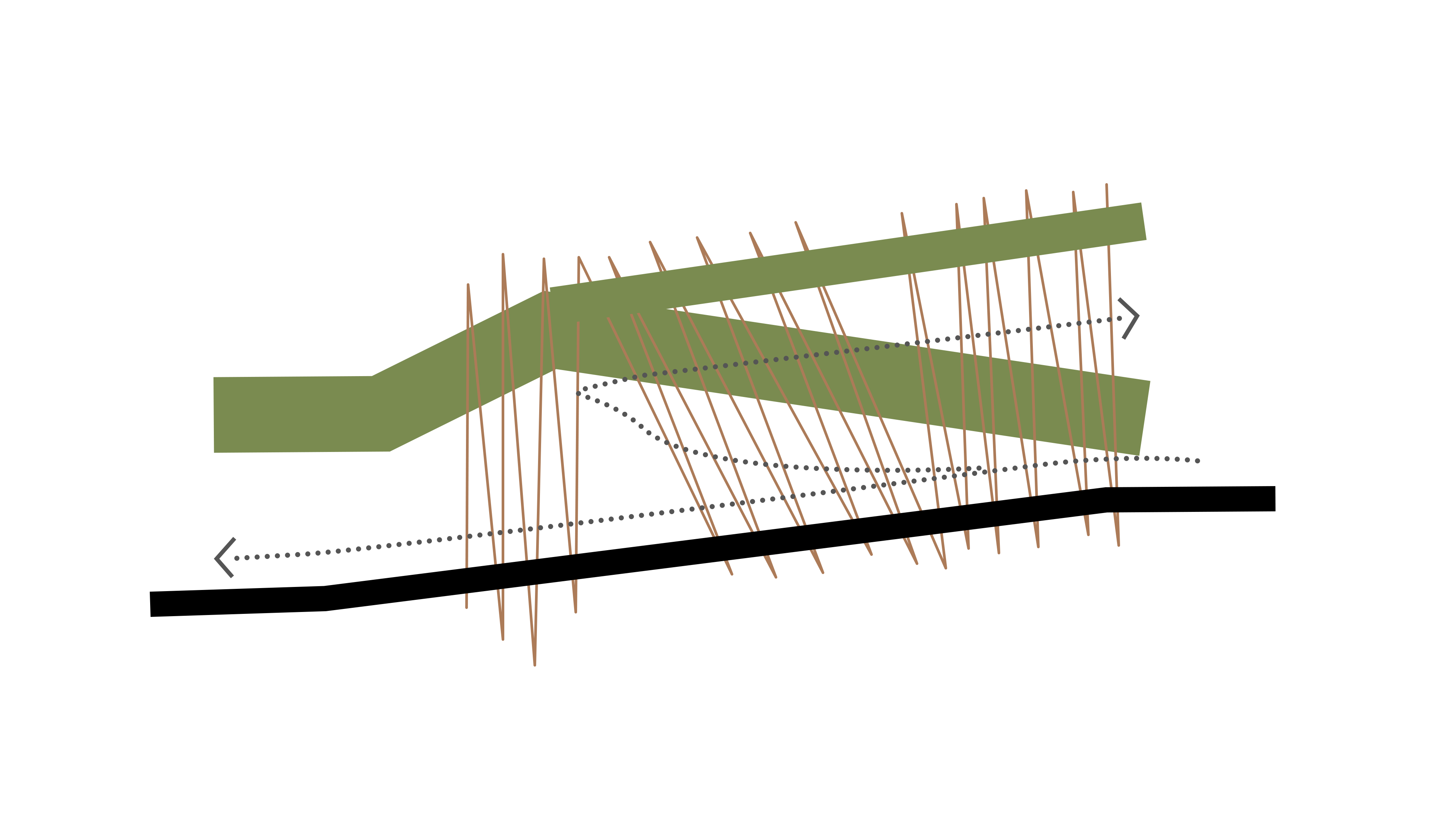

○ Walls & Division Diagram Sectional: Using the shape of the story bridge and similar 'zig-zagging' patterns, I created interest within the steep site. Room for multiple types of spaces throughout the site.

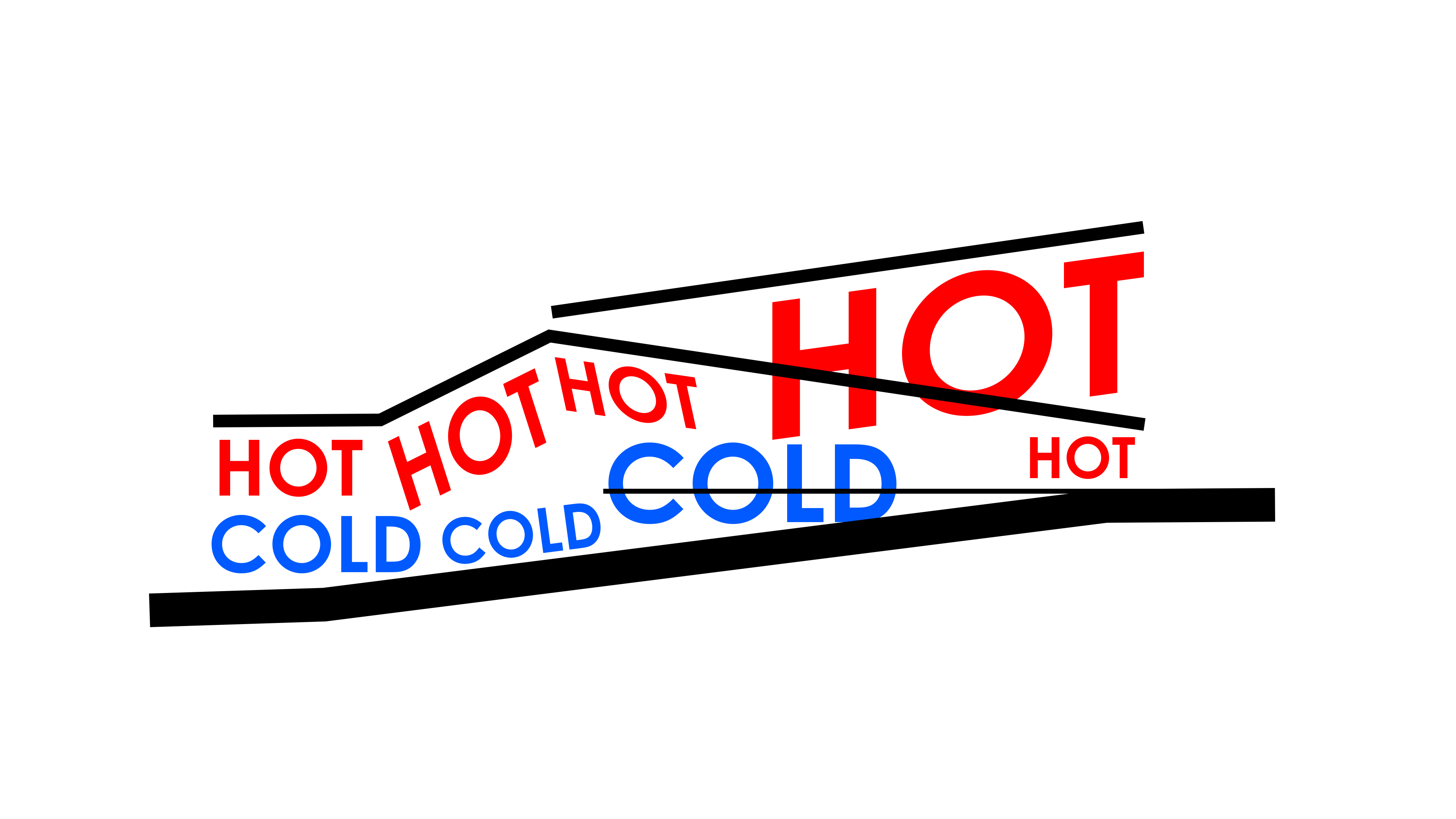

○ Hot & Cold Diagram: Using the same relative shapes, I plotted which spaces hot air would rise and where places would be hot and cold to plan the environment around this; places that are busy & stationary would be cold and vice versa...
